Eaton Wheelock PS-8-EXP-LP

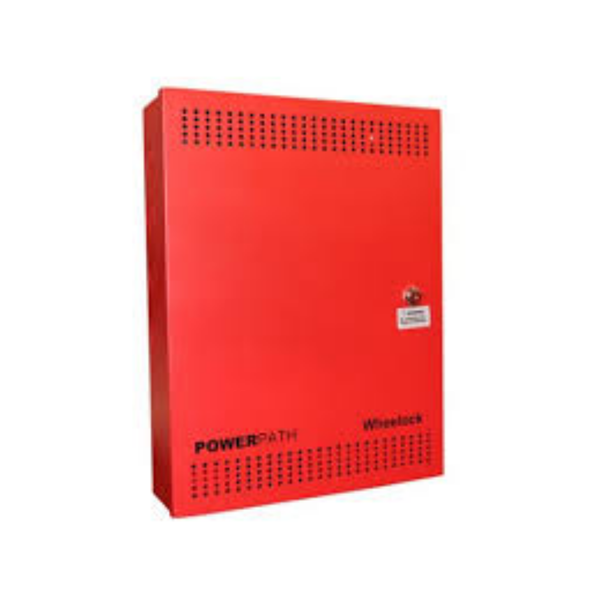

Eaton Wheelock PS-8-EXP-LP - Power Supply Expansion Module

Key Features

• 8 amp supervised power output with low-profile cabinet design
• Filtered and regulated power distribution across 4 outputs
• Supports 8 Class B1/2 or 4 Class 1/2 Notification Appliance Circuits
• Auxiliary power output (2.5 amps) for system accessories
• Compatible with 12V or 24V Fire Alarm Control Panels

Technical Specifications

• Power Output: 8 amps distributed across 4 outputs
• Auxiliary Power: 2.5 amps (disconnected on AC loss or alarm)
• Input Voltage: 12V or 24V FWR/DC
• Red steel enclosure with low-profile design
• NAC or Dry Contact connection capability
• Operating Temperature: 0°C to 50°C

Certifications

• UL Standard 1971
• Designed for ADA compliance support
• Compatible with major fire alarm control panels
