Eaton Wheelock STH-4R

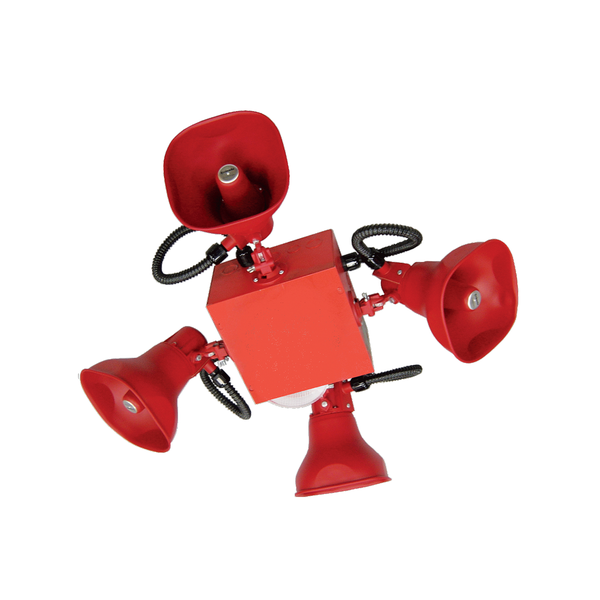

Eaton Wheelock STH-4R - Cluster Speaker with Strobe

Key Features

• Four UL Listed STH-15SR supervised horn loudspeakers in NEMA galvanized steel enclosure
• 60 watts of audio power providing 101 dB sensitivity @ 15 watts @ 10 ft per horn
• Integrated ELSTC ceiling strobe with multiple candela settings
• FIRE lettering on strobe plate for clear emergency identification
• Compact 10"W × 10"L × 6"D enclosure suitable for indoor installations

Technical Specifications

• Audio Output: 101 dB @ 15 watts @ 10 feet per horn
• Strobe Candela Options: 15, 30, 75, 110, 150, 177 cd
• Enclosure: NEMA galvanized steel with red finish
• Mounting: Surface mount with multiple conduit entry options
• Operating Temperature: 0°C to 50°C

Certifications

• UL Standard 1480 (STH-15SR speakers)
• UL Standard 1971 (ELSTC strobe)
• NFPA 72 2016 compliant
