Edwards 1505-AQN5
Edwards 1505-AQN5
In stock!

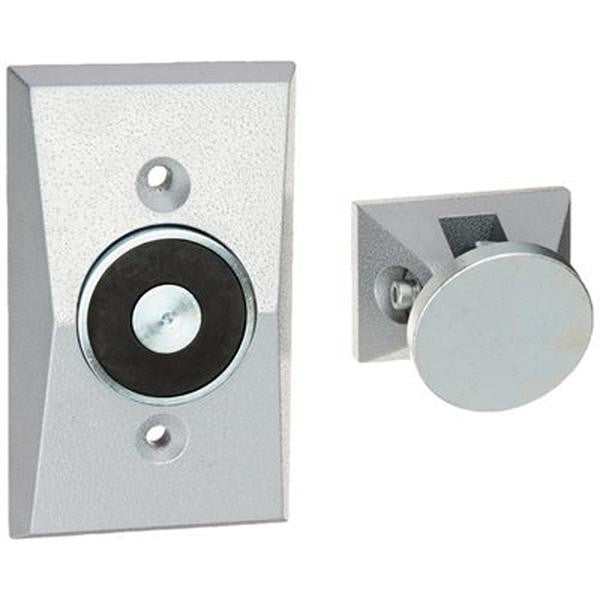

The Edwards 1505-AQN5 is an electromagnetic door holder that keeps a self-closing, swinging fire/smoke door open during normal building use and releases it automatically the instant it's activated by a fire alarm, smoke detection, or sprinkler system signal, letting the door swing shut and maintain its fire-rated compartmentation. It flush/wall-mounts with a total projection of 2-5/8", is built from die-cast metal with a baked polyester powder-paint finish for corrosion resistance, and holds the door with 25 to 50 lbs of magnetic force depending on adjustment.
Key Features
- Automatically releases the door on a fire alarm, smoke detection, or sprinkler signal
- Flush or wall mount configuration
- Die-cast metal construction with powder-epoxy finish
- Adjustable holding force
Technical Specifications
- Input Voltage: 24VAC/DC or 120VAC
- Current Draw: 0.015A
- Holding Force: 25-50 lbs
- Lock Body Dimensions: 4-5/8" L x 2-3/4" W x 13/16" D; Total Projection: 2-5/8"
- Operating Temperature: 32-120°F
Certifications
- UL Listed
- FM Approved
