Edwards 202-7A-TW-NOS

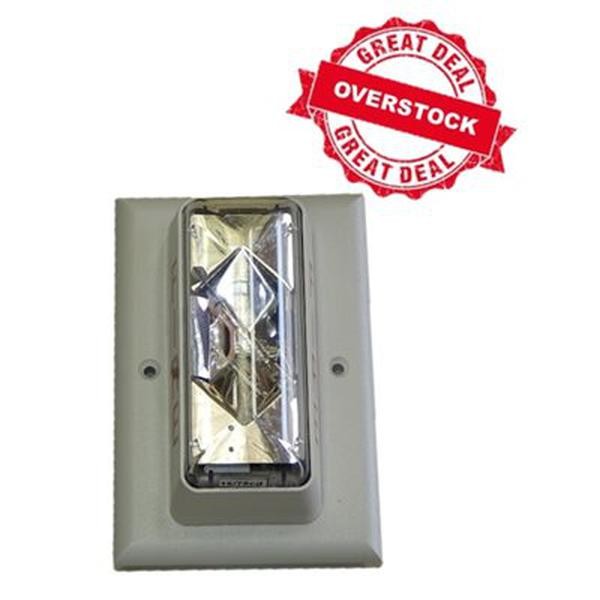

The Edwards 202-7A-TW is a synchronized wall strobe in white, textured color-impregnated plastic, rated for 15/75 candela output (UL 1971 rated 15cd wall/ceiling, UL 1638/ULC S526 rated 75cd). It runs on a continuous 16-33 Vdc signal circuit, flashes at one flash per second, and is fully Genesis-compatible -- synchronizing to within 10 milliseconds over a two-hour period when used with a G1M-RM signal master, SIGA-CC1S, or similar synchronization source.

Key Features

• White, textured color-impregnated plastic housing exceeding 94V-0 UL flammability rating
• Genesis-compatible synchronization with other strobes on the same circuit
• Supplied with LKW-1 "FIRE" red-letter wall-orientation lens marking (changeable via optional LKW/LKC kits)
• Fits a standard one-gang, 2" deep North American flush electrical box

Technical Specifications

• Strobe output: 15/75 cd -- UL 1971 rated 15cd (wall or ceiling), UL 1638/ULC S526 rated 75cd
• Input: 16-33 Vdc/fwr, synchronized at 1 flash per second
• Wire connections: Polarized terminals, #12 AWG (2.5mm²) max
• Flash tube enclosure: Clear LEXAN
• Housing: Textured color-impregnated plastic (exceeds 94V-0 UL flammability rating)
• Mounting: Flush, one-gang 2" deep North American electrical box (or surface, 27193 series box)

Certifications

• UL 1971, UL 1638, ULC S526 Listed; also CE, FM, CSFM, and MEA approved (all models comply with ADA CFR Chapter 28 Part 36)
