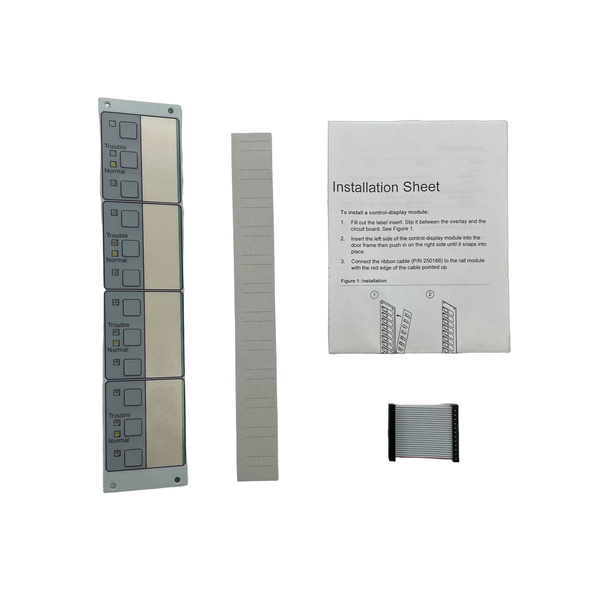

Edwards 3-4/3SGYWR

Edwards 3-4/3SGYWR

Key Features

• Control display module with 12 switches
• Four groups of three switches each
• Multi-color LED status indicators
• 24 VDC operation
• Programmable lamp test function

Technical Specifications

• Switches: 12 in four groups of three
• LEDs: Switch 1 green, Switch 2 yellow/white, Switch 3 red
• Voltage: 24 VDC
• Standby Current: 2.0 mA
• LED Current: 1.5 mA per active LED
• Operating Temperature: 32-120°F (0-49°C)
• Humidity: 0-93% RH (non-condensing)

Certifications & Standards

• NFPA 72
• EST3 Compatible
