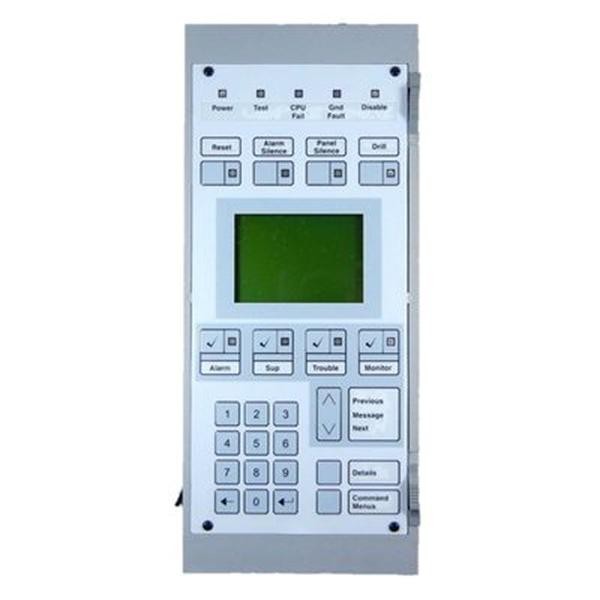

Edwards 3-LCD-RC
Edwards 3-LCD-RC
RECON-Liquid Crystal Dsply Module Mnts To 3Cpu(1)
Regular price
$476.28
Sale price
$476.28
Regular price
Shipping calculated at checkout.
Core Charge $50
Eligible for credit if core is returned within 30 days of order
A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.
Only 3 left!
Key Features
- Main LCD display module for system control point
- Multiple display modules for remote locations
- Clear operator interface with intuitive controls
- Backlit display for visibility in low-light conditions
- Mounts on 3-CPUx or 3-ANNCPUx modules
- Supports networked multi-point fire alarm control
Technical Specifications
- Display Size: 102 mm diameter when installed in DZ-B801 base
- Height: 50 mm
- Weight: Approximately 78 grams
- Operating Temperature: 10°C to 55°C (14°F to 131°F)
- Humidity: 5%-95% relative humidity (non-condensing)
- Operating Voltage: 8.5-35VDC
- Standby Current: ≤90μA
- Alarm Current: 10mA at 4.2VDC
- Cabinet Space: Two LRM spaces on operator layer
Certifications
- UL/ULC fire alarm system certified display
