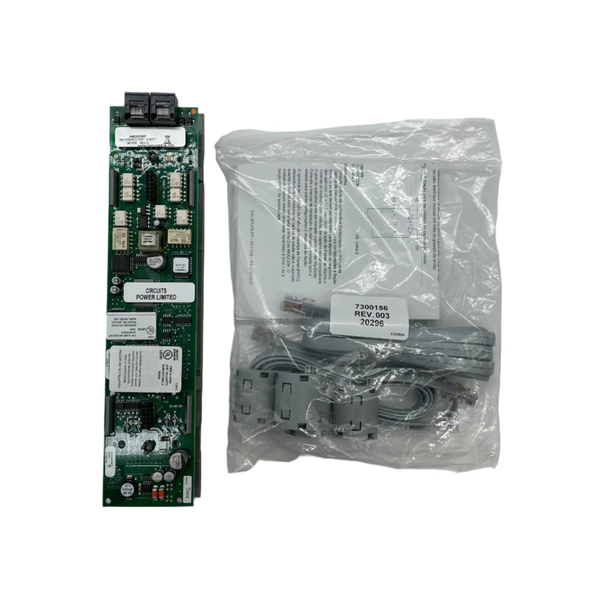

Edwards 3-MODCOMP

The Edwards 3-MODCOMP is a modem/communicator (DACT) module with an added pager interface for EST3 fire alarm control panels. In addition to all the modem and dialer functions of the 3-MODCOM, it can dial directly into paging systems using Telelocator Alphanumeric Protocol (TAP), sending alphanumeric system data to a single pager or group of pagers.

Key Features

• Includes all modem and dialer (DACT) functions of the 3-MODCOM, plus TAP paging support
• Dials directly into paging systems to send alphanumeric alarm data to a pager or group of pagers
• Supervises two loop-start telephone lines via a modular jack
• Occupies a single local rail space and can be mounted at any node on the network
• Enters a degraded operational mode and notifies the central monitoring station if the network CPU fails, continuing to transmit a default alarm message

Technical Specifications

• Telephone lines supported: Two, loop-start, supervised
• Paging protocol: Telelocator Alphanumeric Protocol (TAP)
• Mounting: Single local rail space, any network node
• Platform: Edwards EST3 fire alarm control panel network

Certifications

• UL listed for use with EST3 fire alarm control panel systems
• NFPA 72 compliant
