Edwards 340-6N5

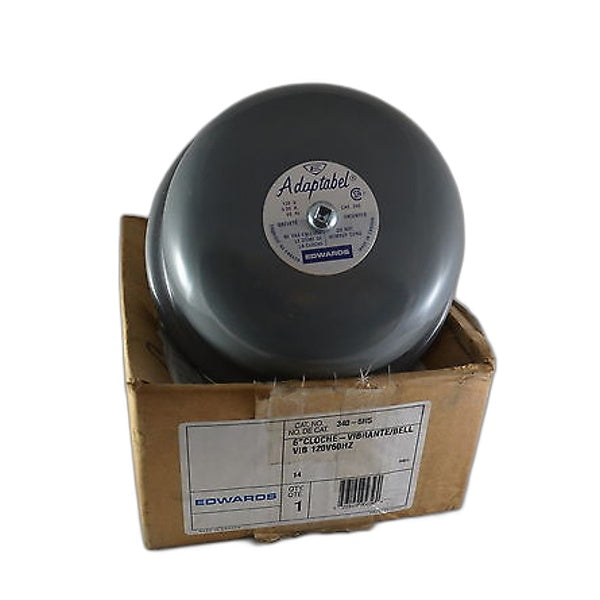

The Edwards 340-6N5 is a 6-inch vibrating bell notification device designed for fire alarm control systems, timing applications, paging, and general alerting. When activated by current, the rapid-fire striker continuously strikes the resonant steel gong, producing a loud, distinctive alarm tone suitable for moderate noise level areas such as factories and commercial spaces.

Key Features

• 6-inch vibrating bell with rapid-fire action
• Universal Adaptaplate mounts directly to surfaces or fits standard electrical boxes
• Compatible with single-gang, 3 1/4" (83mm), 3 1/2" (89mm), or 4" (102mm) octagon boxes
• May be weatherproofed with optional weatherproof box
• Available with full cast grids and protective grilles for enhanced durability

Technical Specifications

• Voltage: 120V AC
• Current Draw: 0.070A
• Gong Material: Selected alloy steel for resonant fire alarm tone
• Mounting: Surface mount or electrical box installation at 2 3/4" (70mm) centers
• Applications: Fire alarm systems, timing, scheduling, paging, general alarm applications

Certifications

• UL Listed fire alarm notification device
• Compliant with fire alarm system standards
