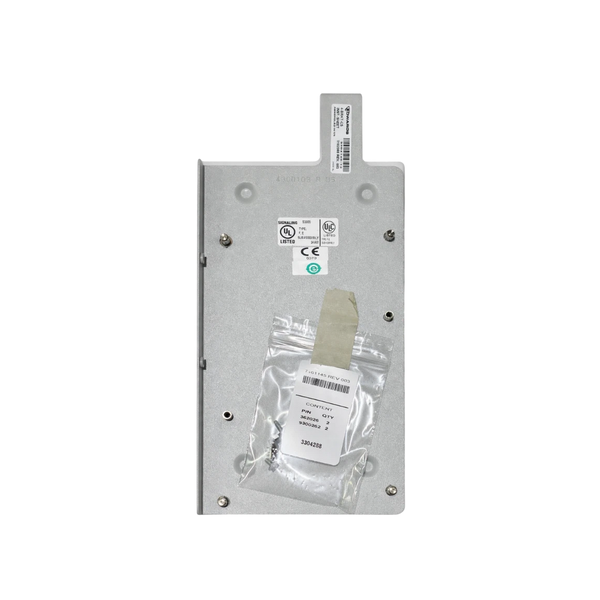

Edwards 4-BRKT-CS

The Edwards 4-BRKT-CS is a mounting bracket that adapts an Edwards EST4 module for use in an existing EST3 system, allowing it to be mounted to the right side of an EST3 3-CHAS7 chassis. It gives EST3 installations a way to add EST4-generation capability -- such as FlexWire or network-adapter modules -- without having to replace the 3-CHAS7 chassis itself.

Key Features

• Adapts a single EST4 module for mounting onto an existing EST3 3-CHAS7 chassis
• Mounts to the right side of the 3-CHAS7 chassis (a separate 4-BRKT-CB variant instead mounts to the back plane)
• Lets EST3 sites add EST4-generation modules without a full chassis replacement

Technical Specifications

• Compatible chassis: Edwards EST3 3-CHAS7
• Capacity: Space for one EST4-generation module
• Mounting position: Right side of the 3-CHAS7 chassis

Certifications

• UL Listed, CE marked (per manufacturer label)
