Edwards 405-5A-T-NOS

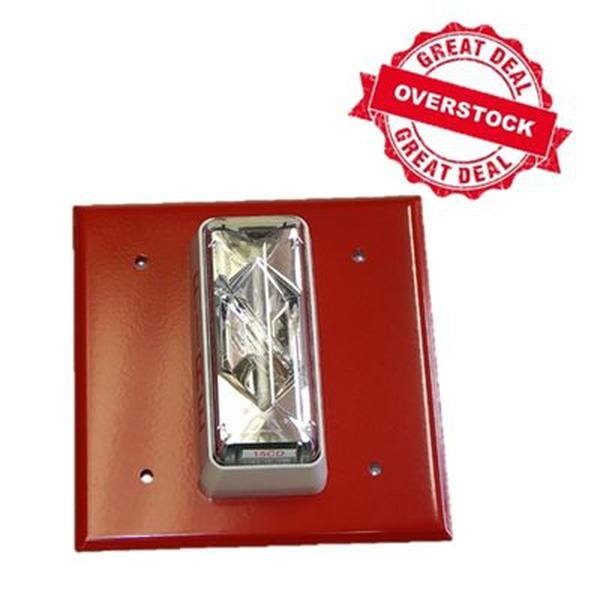

The Edwards 405-5A-T is a harsh-environment wall strobe rated at 15 candela, with a red steel front plate finished in durable baked epoxy polyester powder-coat. It runs on a continuous 16 to 33 Vdc signal circuit (not pulsed), flashes at one flash per second, and is fully Genesis-compatible -- synchronizing to within 10 milliseconds over a two-hour period when used with a G1M-RM signal master, SIGA-CC1S, or similar synchronization source.

Key Features

• Rugged red steel front plate for outdoor or harsh environments
• Genesis-compatible synchronization with other strobes on the same circuit
• Supplied with LKW-1 "FIRE" red-letter wall-orientation lens marking (changeable via optional LKW/LKC kits)
• Fits a standard 4" square North American flush electrical box

Technical Specifications

• Strobe output: 15 cd, UL 1638/ULC S526 and UL 1971 rated (wall)
• Input: Continuous 16-33 Vdc (not pulsed)
• Wire connections: Polarized terminals, #12 AWG (2.5mm²) max
• Flash tube enclosure: Clear LEXAN
• Strobe plate: CRS steel, 5.5" (140mm) square, red baked epoxy polyester powder-coat finish
• Operating environment (indoor): 32-120°F (0-49°C), 85% RH @ 30°C
• Mounting: Indoor -- North American 4" square electrical box

Certifications

• UL 1971, UL 1638, ULC S526 Listed; also CE, FM, CSFM, and MEA approved (all models comply with ADA CFR Chapter 28 Part 36)
