Edwards 55-6AM

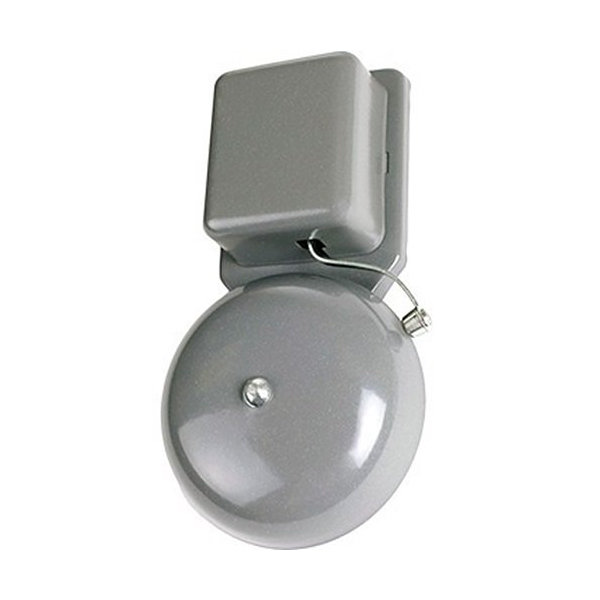

Edwards 55-6AM Fire Alarm Bell

The Edwards 55-6AM is a 55 Series single-magnet vibrating bell providing light-duty alerting for basic security and fire alarm applications. This economy-grade device features a 6-inch gong and exposed striker design for reliable mechanical operation.

Key Features:

• Gong Size: 6-inch diameter for moderate sound output

• Sound Output: 84 dB at 1 meter (74 dB at 10 feet)

• Design: Single magnet vibrating mechanism with exposed grounded terminal

• Housing: Gray color, 10-5/8" H x 6" W x 2-5/8" D

Technical Specifications:

• Operating Voltage: 8 VAC / 6 VDC

• Current: 0.8A / 1A

• Power: 4.8 / 8 VA at 60 Hz

Certifications:

• Listed: Fire alarm and security system signaling device
