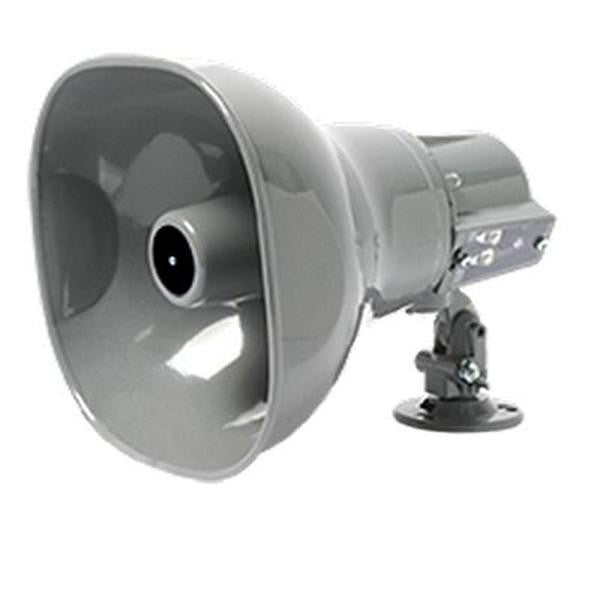

Edwards 5552-15W-G

Key Features

• High-efficiency double re-entrant loudspeaker for fire alarm systems
• 15-watt continuous power output
• 70° dispersion for broad coverage
• Versatile three-way 25/70.7V line transformer
• Adjustable seven-position watts/impedance selection switch
• Suitable for indoor and outdoor applications
• 1/2" conduit connection with adjustable mounting bracket

Technical Specifications

• Type: Re-Entrant Speaker
• Power: 15 watts continuous
• Frequency Response: 400-14,000 Hz nominal
• Audible Output: 120 dB (peak at 1 meter), 110 dB at 10 ft
• Color: Gray
• Transformer: Threeway 25/70.7V line transformer
• Wattage/Impedance Selection: Seven-position adjustable switch
• Connector: 1/2" conduit connection
• Dispersion: 70°
• Mounting: Adjustable bracket for precise positioning
• Operating Temperature: -30°F to 150°F (-35°C to 66°C)
• Application: Indoor and outdoor installations

Certifications

• UL 1480 Listed
• Fire Protective Signaling Speaker
