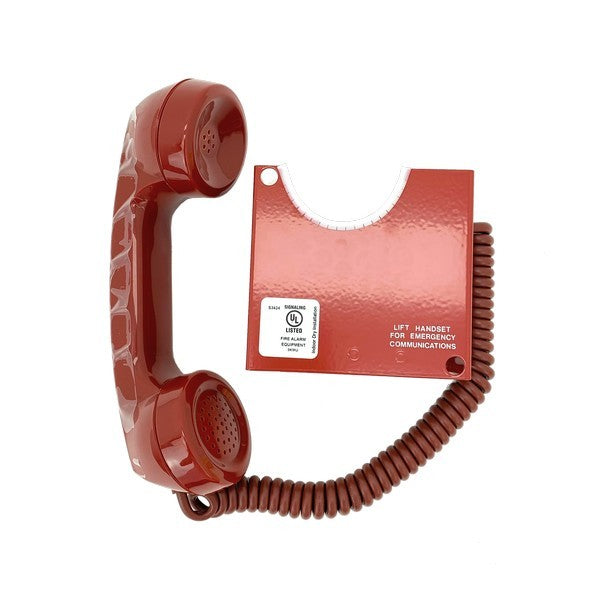

Edwards 6830-4

The Edwards 6830-4 is a fixed red ABS plastic firefighter telephone handset assembly for permanent installation in fire alarm control systems, providing supervised voice communication between emergency personnel and the central control station. The handset features a 60-inch coiled cord with four-state supervised wiring configuration, mounting inside a 6832-1 wall box behind an 6831 series front plate, and is suitable for installation in stairwells, corridors, mechanical rooms, and fire command centers where rapid emergency communication is required.

Key Features

• Red ABS plastic handset body for high visibility and distinctive appearance in emergency environments
• 60-inch (1500 mm) coiled cord providing adequate reach from wall-mounted stations
• Four-state supervised wiring for enhanced system fault detection and compliance with modern fire code requirements
• Keylocked, tamper-resistant design prevents unauthorized access or activation
• Compatible with 6832-1 wall box and 6831 series front plate for modular installation
• Suitable for stairwells, corridors, mechanical rooms, and fire command centers throughout facility

Technical Specifications

• Product Type: Fixed firefighter telephone handset assembly
• Handset Material: Red ABS plastic
• Cord Length: 60 inches (1500 mm) coiled cord
• Wiring Configuration: Four-state supervised wiring
• Mounting: Inside 6832-1 wall box with 6831 series front plate
• Physical Dimensions: 9 × 6 × 6 inches
• Weight: 2 lbs (6 lbs shipping weight)
• Compatible Panel/System: Edwards EST fire alarm control panels
• Operation: Lift handset to activate audible and visual signals; supervisor responds at control station

Certifications

• UL 864 Ninth Edition compliant for fire alarm voice communication systems
• UL and MEA Listed
