Edwards 757-4A-T
Edwards 757-4A-T
In stock!

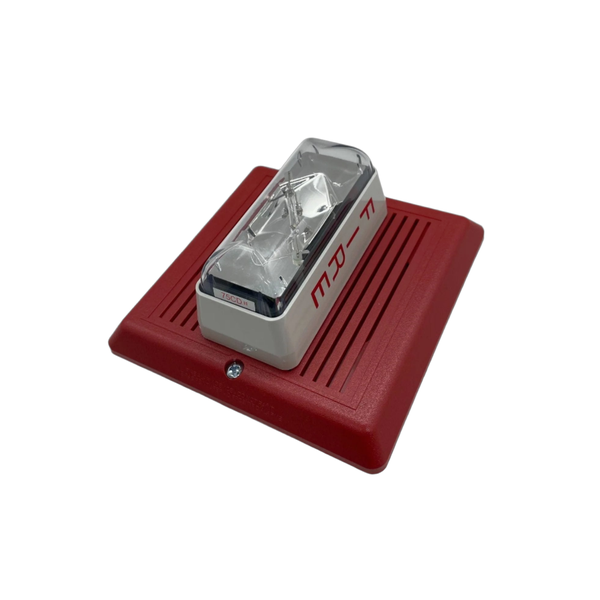

The Edwards 757-4A-T is a red temporal horn-strobe from the Integrity 757 Series, combining a field-selectable horn with a 75 candela xenon strobe for combined audible/visible fire alarm notification. The horn produces a temporal-three (T3) evacuation pattern or continuous tone, selectable in the field along with HIGH (98 dBA) or LOW (94 dBA) volume, and the strobe delivers a bright, consistent flash for visibility in large or noisy spaces.
Key Features
- Field-selectable temporal-3 or continuous horn tone, HIGH/LOW volume
- 75 candela xenon strobe
- Separate, polarized terminals for horn and strobe, allowing one shared NAC circuit or two independent circuits
- Flush-mounts to a standard North American two-gang electrical box, 2-3/4 in. minimum depth
Technical Specifications
- Part No. 757-4A-T
- Voltage: 16-33 VDC, constant (non-pulsed) circuit required
- Sound output: 98 dBA (HIGH) / 94 dBA (LOW)
- Strobe: 75 candela; horns self-synchronize within 200 ms on a shared circuit (external sync module required to meet UL 1971 10 ms strobe sync)
Certifications
- UL Listed
