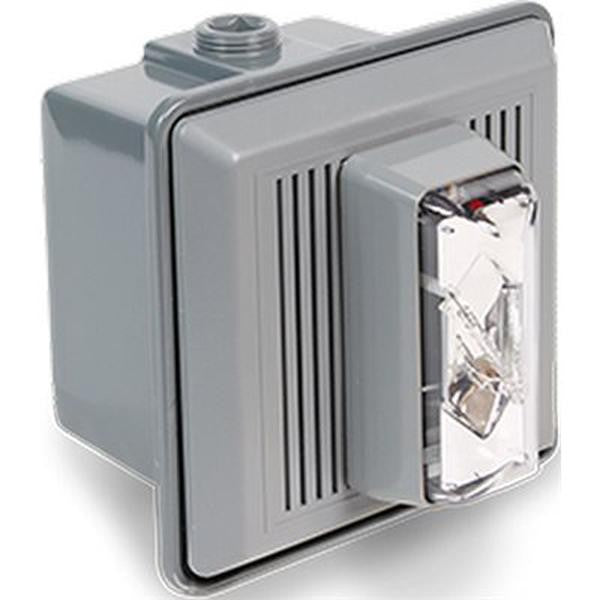

Edwards 868STRC-AQ

The Edwards 868STRC-AQ is a bright, low-current electronic horn-strobe combining audible alarm with 150 candela visual notification. Available in clear lens with gray engineered thermoplastic housing, the 868STRC-AQ operates on 24VAC or 24VDC for flexible fire alarm system integration in commercial, industrial, and residential installations, allowing independent operation of horn and strobe functions.

Key Features

• Surface-mounted combination horn and strobe
• 150 candela clear-lens strobe for high-visibility notification
• 90 dB sound output at 10 feet for effective audible alerting
• Independent operation: horn and strobe may be operated separately
• 24VAC/VDC dual-voltage operation for system flexibility
• 60 flashes-per-minute strobe rate (standard fire alarm pattern)
• Gray engineered thermoplastic housing for durability and weather resistance
• Compact dimensions: 5.5 x 5.5 x 0.625 inches

Technical Specifications

• Voltage: 24VAC (50/60 Hz) or 24VDC (dual compatible)
• Current Draw: 462 mA @ 24V AC; 412 mA @ 24V DC
• Strobe Output: 150 candela, clear lens
• Sound Level: 90 dB @ 10 feet
• Flashes: 60 per minute
• Dimensions: 5.5\" H x 5.5\" W x 0.625\" D
• Housing Material: Gray, engineered thermoplastic
• Installation: Surface mount on walls or equipment panels
• Operation: Independent horn and strobe control

Certifications

• UL 1638 Listed fire alarm notification appliance
• UL 464 Listed electrical safety equipment
