Edwards 965-3A-8RW

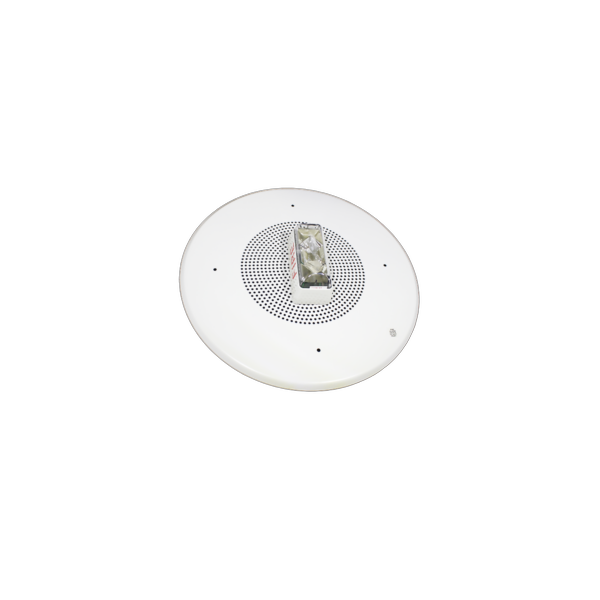

The Edwards 965-3A-8RW is a ceiling-mount, 8-inch speaker-strobe from Edwards' 964/965 Series, broadcasting supervised 70 VRMS emergency voice and alarm tone signals while also providing a 30 cd UL 1971-rated visual notification strobe. The 8-inch speaker cone offers wattage taps from 1/2 to 4 watts (measured at 10 ft: 4W = 88 dBA down to 1/2W = 79 dBA) so audio output can be adjusted on site, while the strobe runs on a continuous 16-33 Vdc signal circuit and flashes once per second, synchronizing with other Edwards Genesis/Integrity strobes on the same circuit when paired with an external control module.

Key Features

• Combined 70 VRMS speaker and UL 1971-listed strobe in one ceiling-mount appliance
• Wattage taps from 1/2 W to 4 W, selected by sliding the connector on the terminal block
• Ships with LKC-1 "FIRE" red-letter ceiling lens marking; optional LKC/LKW lens kits available for other markings or wall orientation
• Flush mounts to Edwards' 960A-8RF round flush back box

Technical Specifications

• Strobe output: 30 cd (wall), 15 cd (ceiling), UL 1971 / UL 1638 / ULC S526 rated
• Strobe input: 16-33 Vdc continuous, synchronized at 1 flash/second
• Speaker: 70 VRMS circuit, 8" cone, 8-ohm voice coil, 100 Hz-8 kHz +/-5 dB response
• Wire connections: Polarized speaker terminals (#14 AWG max), color-coded polarized leads for the strobe (2-IN/2-OUT)
• Baffle: Steel with white baked epoxy polyester powder-coat finish
• Mounting: Flush to Edwards 960A-8RF round flush box
• Operating environment: 32-120°F, 85% RH at 30°C (indoor rated)

Certifications

• UL 1971, UL 1638, UL 1480, ULC S526, ULC S541 listed; also FM, CSFM, and MEA approved
