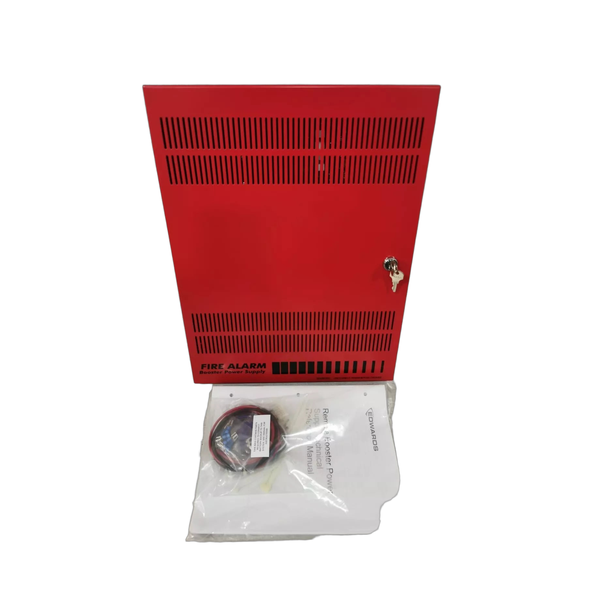

Edwards BPS10A/230

Key Features

• 10 amp remote booster power supply for 240V input systems
• Extends power capabilities for fire alarm, mass notification, security, and access control systems
• Four Class B (Style Y) NAC circuits with conversion option to two Class A (Style Z)
• 24 VDC filtered and regulated output
• Internal battery charging circuitry for standby power integration
• Synchronization support for Edwards Genesis notification appliances
• Coded signal operation capability

Technical Specifications

• Input Voltage: 240 V, 50/60 Hz
• Maximum Current Draw: 10 A
• Output Voltage: 24 VDC filtered and regulated
• NAC Configuration: Four Class B (Style Y) NACs convertible to two Class A (Style Z)
• Individual Circuit Capacity: Up to 3 A per output circuit
• Total System Output: 10 A maximum across all NAC circuits
• Battery Support: Internal battery charging for standby operation

Certifications

• NFPA 72 National Fire Alarm and Signaling Code compliant
• UL 864 Standard for Control Units and Accessories for Fire Alarm Systems
• CAN/ULC-S527-11 Standard for Control Units for Fire Alarm Systems
