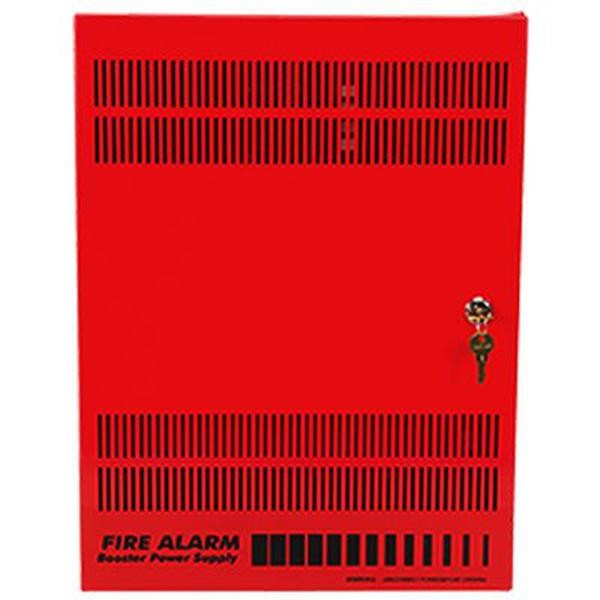

Edwards EBPS6A

Booster Power Supply

Key Features

• 6.5 Amp booster power supply for expanded NAC control
• Controls up to 4 Class B or 2 Class A notification appliance circuits
• Built-in battery charging and monitoring circuitry
• Accommodates two 10 Ah internal batteries or external cabinet
• Supervised 24 VDC filtered and regulated output

Technical Specifications

• Input Power: 120 VAC, 220-240 VAC, 50/60 Hz
• Power Rating: 390W
• Output: 24 VDC filtered-regulated and supervised
• Maximum Output: 6.5A total all NACs, 3.0A per circuit max
• NAC Configuration: 4 Class B or 2 Class A circuits
• Physical Dimensions: 13" W x 3.5" D x 17" H
• Case: Steel construction
• Battery Capacity: Internal space for two 10 Ah batteries
• Battery Support: Compatible with external battery cabinets for larger capacity
• Monitoring: Automatic battery charge and health monitoring

Certifications

• UL 864 9th Edition Listed
• Life safety, security, and access control certified applications
