Edwards EG1AVWF
Edwards EG1AVWF
In stock!

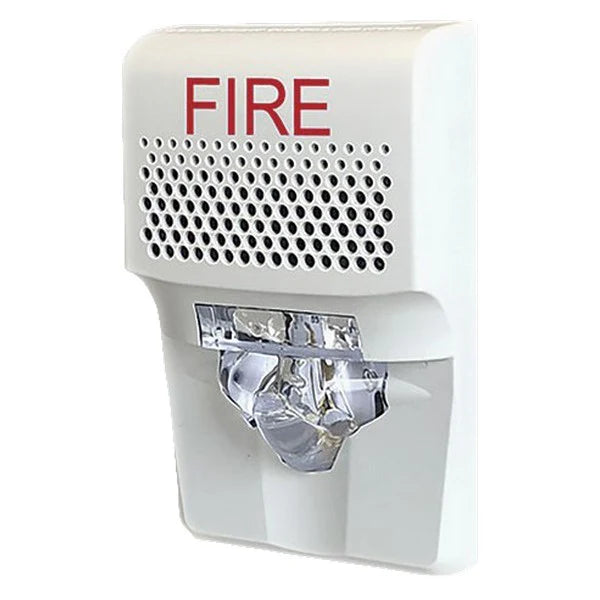

The Edwards EG1AVWF is a compact wall-mount horn/strobe from the Genesis EG1 Series, combining an audible horn with a high-intensity LED strobe in a white housing with a clear "FIRE"-marked lens. Both the strobe candela (15, 30, or 75cd) and the horn output (Temporal-3 or constant tone, high or low dB) are field-configurable without removing the device from the wall, letting one SKU cover multiple notification requirements across a building instead of stocking several fixed-output models.
Key Features
- Field-selectable strobe candela: 15, 30, or 75cd
- Field-selectable horn tone (Temporal-3 or constant) and volume (high/low dB)
- Flame-rated thermoplastic housing
- Fits standard 1-gang, 2-gang, 4" octagon, or 4" square electrical boxes
Technical Specifications
- Input Voltage: 16-33 VDC (nominal 24VDC)
- Horn Output: Up to approximately 92 dBA (high setting)
- Dimensions: 4.6" H x 3.0" W x 1.1" D
- Wiring: Screw terminals, 12-18 AWG
Certifications
- UL Listed fire alarm notification appliance
