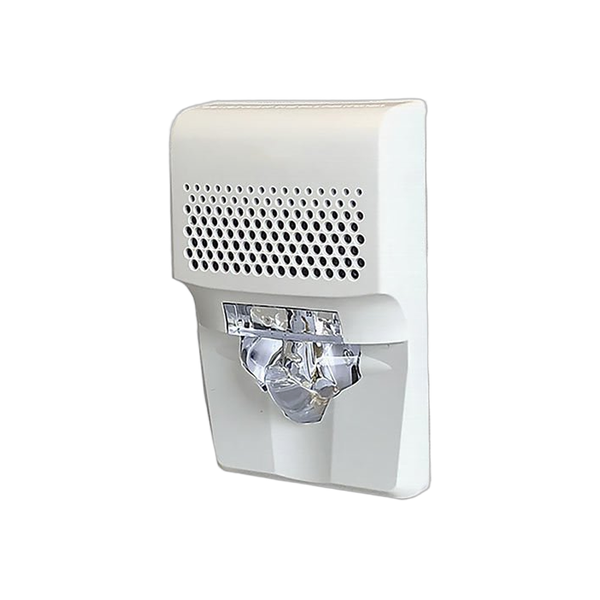

Edwards EG1AVWN

The Edwards EG1AVWN is an addressable Genesis LED combination horn and strobe notification appliance designed for fire alarm system integration. This white-housed wall-mount device combines high-intensity LED strobe technology with adjustable audible alarm output, offering field-configurable candela and volume settings for customized emergency notification in commercial and industrial environments.

Key Features

• Genesis LED strobe with field-selectable 15, 30, or 75 candela output
• Temporal or continuous horn operation with high/low dB settings
• Addressable integration with Edwards fire alarm control panels
• LED technology requires fewer power supplies than traditional xenon strobes
• Wall-mount design compatible with standard electrical boxes
• White housing blends with building interiors
• Low current consumption for efficient power management

Technical Specifications

• Operating Voltage: 16-33 VDC (nominal 24 VDC)
• Strobe Output (selectable): 15, 30, or 75 candela
• Horn Output: Up to ~92 dBA (high-dB setting)
• Addressable Control: Compatible with Edwards addressable panels
• Mounting: Wall-mount, standard 1-gang, 2-gang, 4-inch octagon or square boxes
• Housing Material: Flame-rated thermoplastic
• Dimensions: 4.6 in (H) × 3.0 in (W) × 1.1 in (D)
• Color: White

Certifications

• UL 1971 synchronized strobe listing
• UL 464 audible signaling appliance
• Genesis addressable compatibility
