Edwards EG1R-HDVM
Edwards EG1R-HDVM
Horn-Strobe Wall 15-110 Cd 24VDC Red
Regular price
$72.99
Sale price
$72.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time

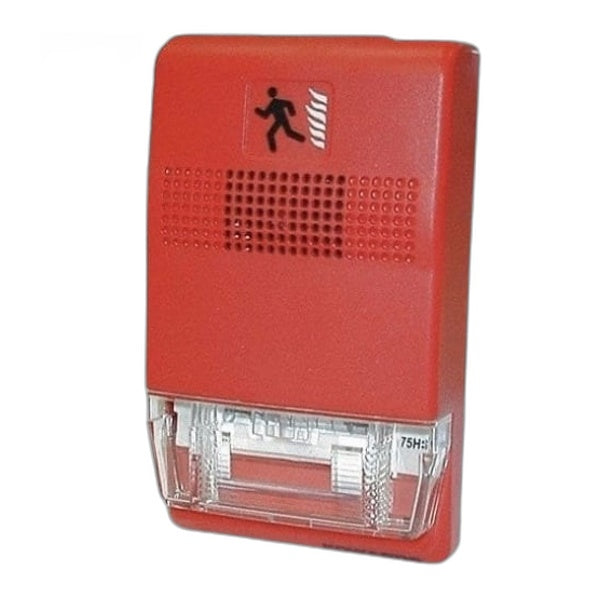

Genesis Red Horn-Strobe
Key Features
- Combined horn-strobe notification device for dual audible-visual alerting
- Multi-candela xenon strobe: 15, 30, 75, or 110 cd selectable
- Selectable temporal horn with multiple frequency tones for wall penetration
- Ultra-compact 1-inch wall protrusion design
- Wall mounting configuration with red lens
Technical Specifications
- Power Supply: 24 VDC
- Current Draw: 0.129-0.429A
- Horn Output: 94.4 dB high / 84.4 dB low (selectable)
- Horn Frequency: Multiple frequencies for excellent wall penetration
- Strobe Type: Xenon lamp
- Strobe Candela: Field-selectable 15, 30, 75, or 110 cd
- Physical Dimensions: 4.5" H x 2.75" W x 0.8125" D
- Wall Protrusion: 1 inch maximum
- Mounting: Wall mount, indoor only
- Operating Temperature: 0-49°C (32-120°F)
- Synchronization: Compatible with EG1M Genesis Signal Master and fire panels
Certifications
- UL/ULC Listed for fire alarm systems
- CE Certified
- FCC Certified
- FM Approved
- MEA Listed
