Edwards FX-RLY
Edwards FX-RLY
Out of stock; call for lead time

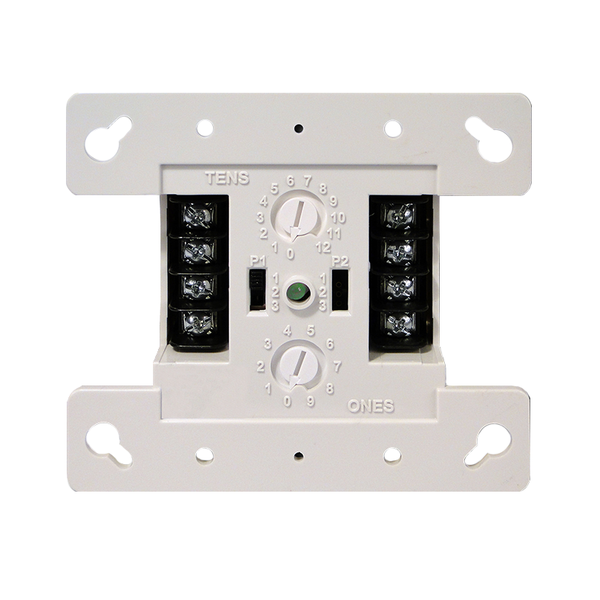

The Edwards FX-RLY is an analog addressable relay module that gives one point on the signaling line circuit a Form C dry relay contact, letting the fire alarm system control an external appliance or shut down equipment on command. Device address is set in the field with two rotary switches on the front of the module, and it ships configured as a relay/non-silence device type that can be wired either as a straight control relay or, with polarity reversed, as a polarity-reversal relay for devices like door holders.
Key Features
- One Form C dry relay contact, field-configurable as a control relay or polarity-reversal relay
- Address set via two front-mounted rotary switches
- Bicolor status LED: flashing green in normal operation, flashing red when active
- Used to activate fire doors, control ventilation/dampers, or shut down connected equipment
Technical Specifications
- Contact rating: 30VDC at 2A, or 125VAC at 0.5A
- Maximum communication line voltage: 20V peak-to-peak
- Operating temperature: 32°F to 120°F
Certifications
- UL Listed addressable relay module for use on UL-listed Edwards fire alarm systems
