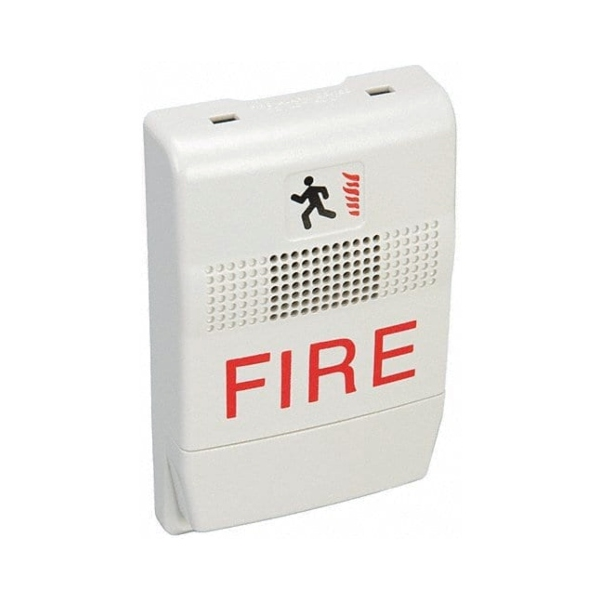

Edwards G1F-HD-E

Key Features

• Genesis compact speaker/strobe combination optimized for voice intelligibility
• Smallest multi-function notification device in its class (deck-of-cards size)
• Sealed back speaker construction eliminates moisture intrusion
• 4-inch mylar cone with 250-5000 Hz frequency response for clear voice reproduction
• Selectable candela output strobe for flexible visibility requirements
• ¼, ½, 1, or 2-watt operation configurable in the field

Technical Specifications

• Operating Voltage: 16-33 VDC (Regulated or 16-33V Full Wave Rectified)
• Speaker Frequency Response: 250 to 5,000 Hz
• Wattage Options: ¼, ½, 1, or 2 watts (selectable via side switch)
• Speaker Cone: 4-inch (102 mm) mylar with sealed back construction
• Mounting: Flush to 4-inch square electrical box or 100 mm European box
• Depth Requirement: 2⅛ inches (54 mm)
• Strobe: Selectable candela output

Certifications

• Genesis EST approved
• UL-listed notification appliance
• Compact life safety signaling device
