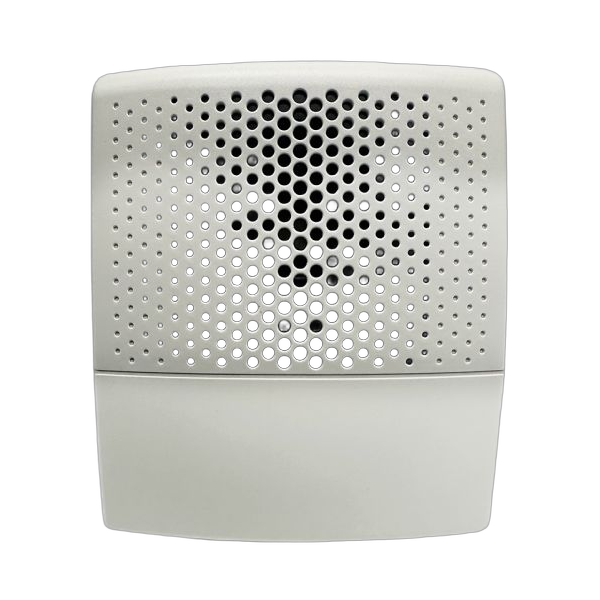

Edwards G4AWF
Edwards G4AWF
In stock!
The Edwards G4AWF is a Genesis LED G4 Series wall-mount horn in a white housing marked "FIRE," providing audible-only notification on a standard NAC circuit. It operates on 16 to 33 Vdc (or VFWR) with a horn signal field-selectable between constant and temporal (T-3) output, synchronizes with Edwards CC Series signal modules, booster/auxiliary power supplies, and compatible control panels, and requires a GP10 room-side wiring plate that is sold separately.
Key Features
- Audible-only Genesis LED G4 Series horn (no strobe)
- Field-selectable constant or temporal (T-3) signal pattern
- White housing with "FIRE" marking
- Low-profile design mounts to a separately-ordered GP10 room-side wiring plate
Technical Specifications
- Horn signal type: Constant or T-3 temporal (field-selectable)
- Input voltage: 16-33 Vdc / 16-33 VFWR
- Synchronization sources: Edwards CC Series signal modules, booster/auxiliary power supplies, intelligent/conventional control panels
- Mounting: Requires GP10 room-side wiring plate (sold separately)
- Series: Edwards Genesis LED G4 Series (datasheet E85001-0668)
