Edwards G4SVWN

Key Features

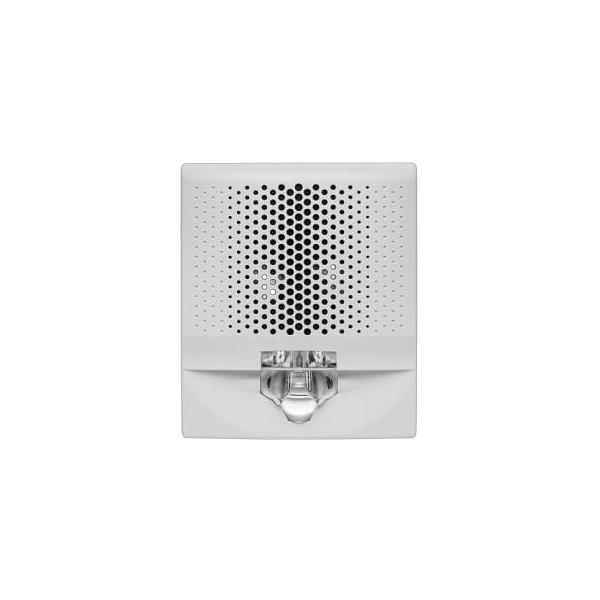

• Genesis LED G4S Series wall-mounted speaker/strobe combination
• High-fidelity audio with excellent speech intelligibility (STI)
• Low-frequency (520Hz) capable operation option
• High-performance LED strobe technology
• Field-flexible configuration options
• Low-profile compact design for aesthetics

Technical Specifications

• Operating Voltage: 16 to 33 VDC filtered or 16 to 33 VFWR unfiltered
• Current Draw: 28 mA at 16-33 VDC across all candela settings (36 mA on VFWR)
• Speaker Voltage: 25VRMS or 70VRMS selectable
• Speaker Frequency Response: 400Hz-4,000Hz
• Light Output: 15, 30, 75, or 110 candela selectable
• Flash Rate: 1 fps (flash per second)
• Dimensions: 4.95 in wide x 5.78 in high x 1.62 in deep
• Housing Color: White
• Marking: No text marking
• Compatible Boxes: 2-gang and 4-inch square electrical boxes
• UL 1971 Synchronization: Within 10 ms over two hours, max 20 ohms wire resistance

Certifications

• UL 1971 Listed for synchronization compliance
• Part of Edwards Genesis LED G4S Series
• Requires GRSW room side wiring plate (ordered separately)
