Edwards GCF-HDVMH
Edwards GCF-HDVMH
Horn-Strobe Ceiling 95-177 Cd 24VDC White Fire
Regular price
$81.99
Sale price
$81.99
Regular price
Shipping calculated at checkout.
In stock!

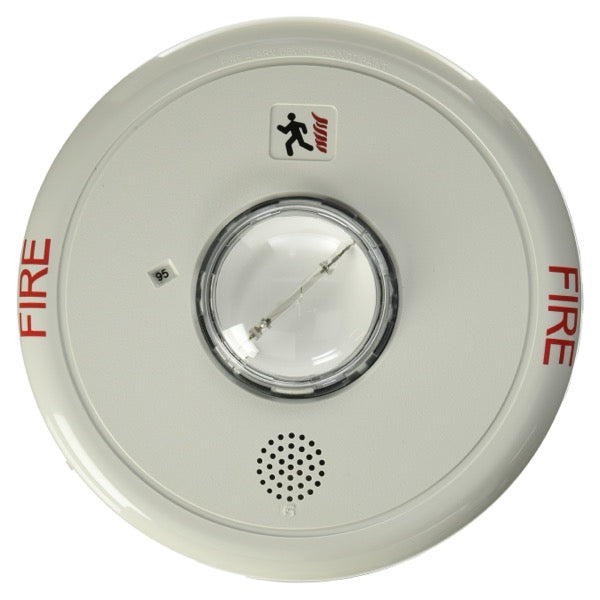

The Edwards GCF-HDVMH Genesis is a ceiling or wall-mounted combination horn-strobe providing both audible and visual alerts for fire alarm applications. Featuring multi-candela output selection (95-177 cd), field-programmable temporal or steady horn modes, and 24VDC operation, this compact notification appliance meets modern fire code requirements for life-safety signaling in commercial and institutional buildings.
Key Features
- Genesis horn-strobe combining audible and visual alarm signaling
- Multi-candela strobe output: 95, 115, 150, or 177 cd selectable
- Field-programmable temporal and steady horn modes
- Compact 1.6-inch projection for ceiling/wall mounting
- UV-stabilized engineered plastic housing with 94V0 flammability rating
Technical Specifications
- Voltage: 24V DC with full-wave rectified (FWR) option
- Current: 0.341-0.570A at 24V DC (varies by candela)
- Sound Output: 96.6 dBA peak with field-configurable jumper options
- Strobe Output: 95, 115, 150, or 177 candela (selectable)
- Dimensions: 2.75" length x 13/16" depth, ~1.6" projection
- Operating Temperature: 32-120°F, Humidity to 93% RH
- Marked 'FIRE' in compliant labeling
Certifications
- UL Listed
- FM Approved
