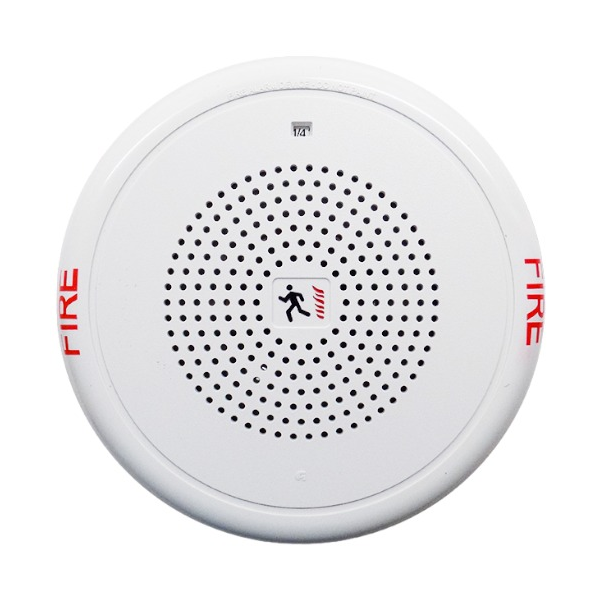

Edwards GCF-S2

Key Features

• Genesis ceiling speaker with white finish and "FIRE" marking
• 25V audio circuit with field-selectable wattage (¼, ½, 1, or 2 watts)
• Sealed back construction provides superior moisture resistance and audibility
• DC blocking capacitor enables electrical supervision of audio distribution circuit
• Compact, low-profile design blends with commercial ceilings
• 400-4000 Hz frequency response optimized for voice clarity

Technical Specifications

• Operating Voltage: 25 Vrms
• Wattage Options: ¼, ½, 1, or 2 watts (field selectable)
• Frequency Response: 400 to 4,000 Hz
• Wire Size: 12 to 18 AWG (2.50 to 0.75 sq mm)
• Supervisory Voltage: 30 V maximum
• Operating Temperature: 32 to 120°F (0 to 49°C)
• Humidity: 0 to 93% RH, non-condensing at 90°F
• Construction: Sealed back for moisture protection

Certifications

• UL 1480 fifth edition approved
• ULC-S541 certified
• Genesis fire alarm speaker
