Edwards GCSVWF

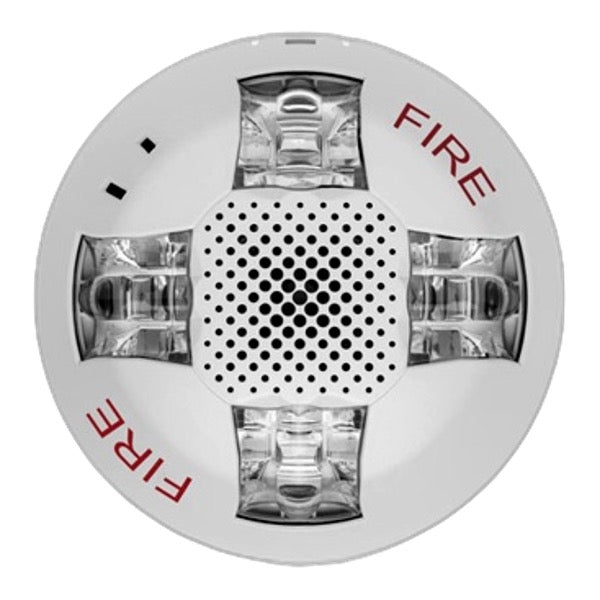

The Edwards GCSVWF Ceiling Speaker Strobe is a Genesis compact audible-visible notification appliance combining speaker and strobe in a low-profile ceiling-mount enclosure. Producing selectable 15, 30, 75, or 115 candela strobe output with stereo-quality speaker audio, the GCSVWF integrates voice announcement and alert signaling into a single device protruding just 1.6 inches from the ceiling.

Key Features

• Genesis ceiling-mounted speaker-strobe combination device
• Low-profile design protruding only 1.6 inches from ceiling
• Selectable 15, 30, 75, or 115 candela LED strobe output
• Speaker frequency response: 400Hz to 4,000Hz for clear voice reproduction
• Dual-voltage operation: 25V or 70V selectable
• Power selection: 1/4, 1/2, 1, or 2 watt configurations
• Energy-efficient LED technology reduces power supply and battery requirements
• Fits standard 2-gang and 4-inch square electrical boxes with GRSW wiring plate

Technical Specifications

• Device Type: Ceiling speaker-strobe
• Color: White
• Strobe Output: 15, 30, 75, or 115 candela (field-selectable)
• Voltage: 25V or 70V (field-selectable)
• Speaker Power: 1/4, 1/2, 1, or 2 watts
• Audio Frequency: 400Hz-4,000Hz
• Depth from ceiling: 1.6 inches (41mm)
• Mounting: Ceiling mount with GRSW room side wiring plate

Certifications

• UL 1971 Listed fire alarm notification appliance
• UL 1638 compliance for strobe specifications
