Condition: New

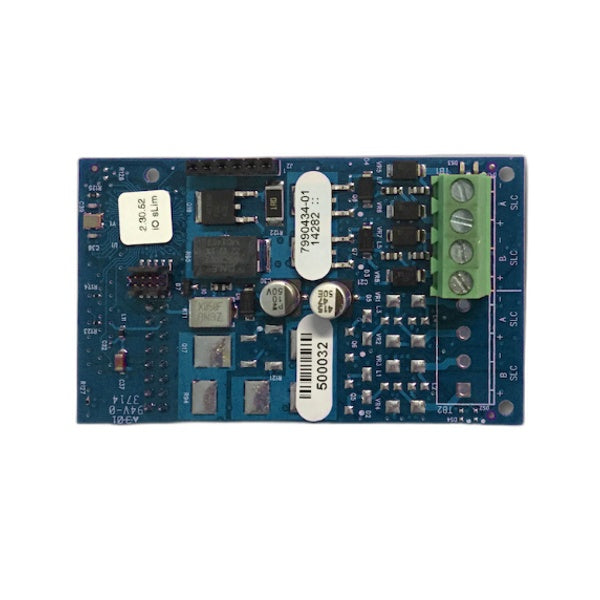

Edwards IO-SDC1
Edwards IO-SDC1
Module Expansion One 250-Device Loop
Regular price
$552.99
Sale price
$552.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time
Key Features
- Single loop controller card expansion module
- Supports 250-device addressable loops on iO1000 or 64-point on iO64
- Flexible Class A or Class B wiring support
- Supervised communication line for addressable devices
- Maximum 64 isolators per loop
Technical Specifications
- Panel Compatibility: iO1000G, iO1000GD, iO1000R, iO1000RD, iO64
- Device Capacity: 250 addresses (iO1000) or 64 (iO64)
- Voltage: 24 VDC operation
- Standby Current: 55 mA (fully loaded)
- Alarm Current: 80 mA
- Comm Line Voltage: Max 20.6V peak-to-peak
- Wiring: Class A or Class B supported
- Isolators: 64 maximum per loop
- Loop Resistance: Max 66 Ω; Capacitance: Max 0.5 µF
- Wire Size: 12-18 AWG (0.75-2.5 mm²)
Certifications
- UL Listed for iO-series control panels
- NFPA 72 compliant
