Edwards RS-485-M

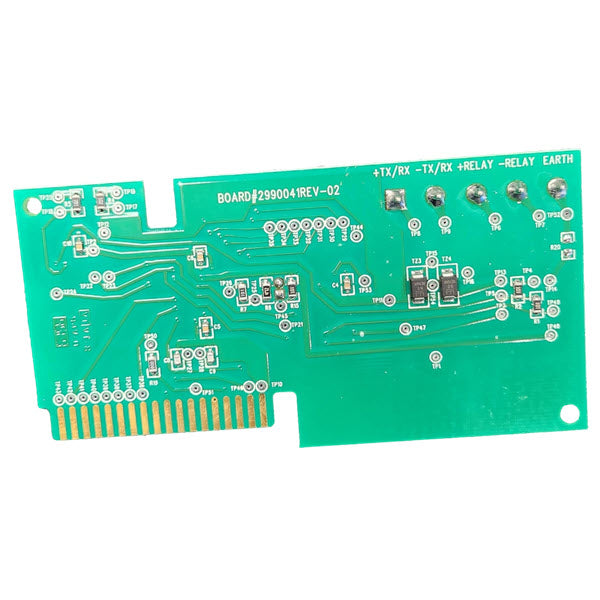

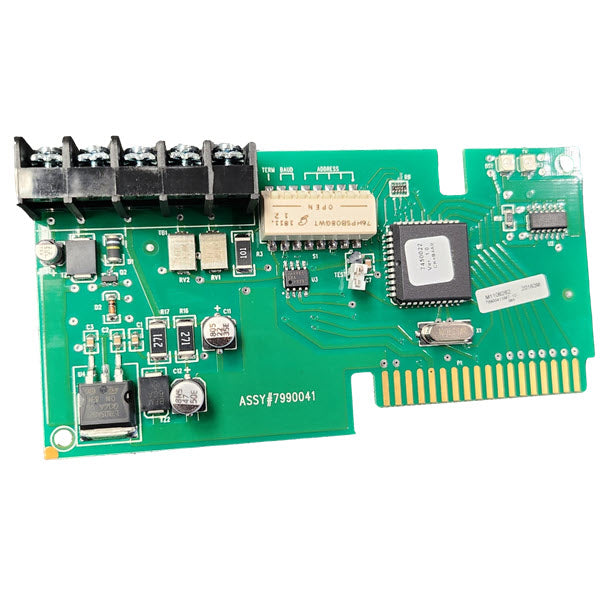

The Edwards RS-485-M is a network interface module for Edwards Signaling Millennium-class fire alarm control panels, enabling multi-panel communication and integration with remote monitoring stations over a two-wire serial network. This printed circuit board kit implements the RS-485 serial protocol standard, allowing multiple Millennium panels to share alarm and trouble information across Class A (Style 7) or Class B (Style 4) wired configurations. The module supports central station connection for off-premise monitoring and alarm transmission, providing network-scale system supervision for multi-building fire alarm installations and complex facilities requiring coordinated fire detection across distributed zones.

Key Features

• RS-485 two-wire serial network interface for panel communication
• Supports Class A (Style 7) and Class B (Style 4) wiring
• Enables multi-panel information sharing within Millennium systems
• Central station connection for remote monitoring
• Printed circuit board architecture for standard installation
• Integrates with Edwards Millennium addressable control panels
• Network serial interface supports standard RS-485 protocols

Technical Specifications

• Interface Type: RS-485 serial network module
• Protocol: RS-485 standard serial communication
• Wiring Class A: Style 7 (end-of-line resistor required)
• Wiring Class B: Style 4 (two separate wire pairs)
• Panel Compatibility: Edwards Millennium class panels
• Installation: Printed circuit board insertion in panel slot
• Data Rate: Standard RS-485 rates per Edwards documentation

Certifications

• UL Listed - Component of Edwards Millennium systems
• Compliant with NFPA 72 for network-connected fire alarm systems
