Condition: New
Edwards SD-T24
Edwards SD-T24
Sampling Tube Duct Detector Accessory 24 in
Regular price
$13.99
Sale price
$13.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time

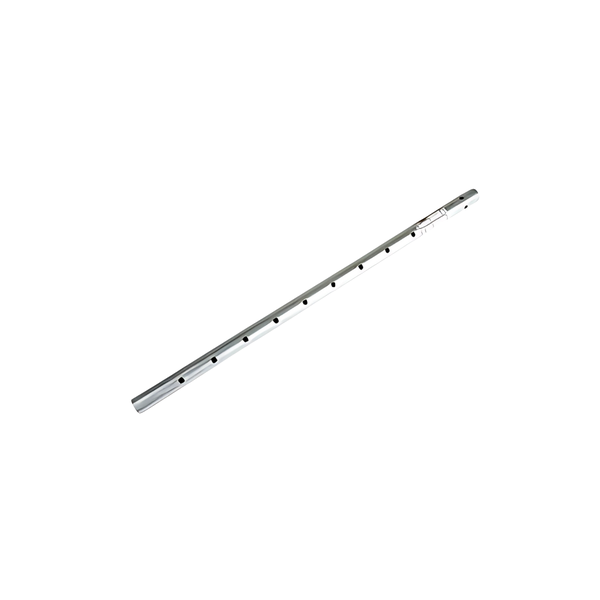

The Edwards SD-T24 is a 24-inch air sampling tube for the SuperDuct series of duct smoke detectors, designed to draw a representative air sample from HVAC ductwork into the detector's sensing chamber. It's sized for medium-width ducts, matching tube length to duct width so the tube's intake holes span the airstream correctly.
Key Features
- SuperDuct air sampling tube sized for medium HVAC duct widths (up to 24 inches)
- Precisely-spaced intake holes for balanced, representative air sampling
- Rigid, corrosion-resistant construction for long-term duct mounting stability
- Part of a family of lengths (SD-T8 through SD-T120) to match a wide range of duct sizes
Technical Specifications
- Length: 24 inches
- Type: Air sampling tube
- Compatible Detector: SD-4WJ four-wire duct smoke detector
- Operating Temperature Range: -20°C to 70°C (-4°F to 158°F)
- Minimum Air Velocity: 100 ft/min
- Material: Rigid, corrosion-resistant tube
Certifications
- UL Listed
- NFPA 72 compliant
