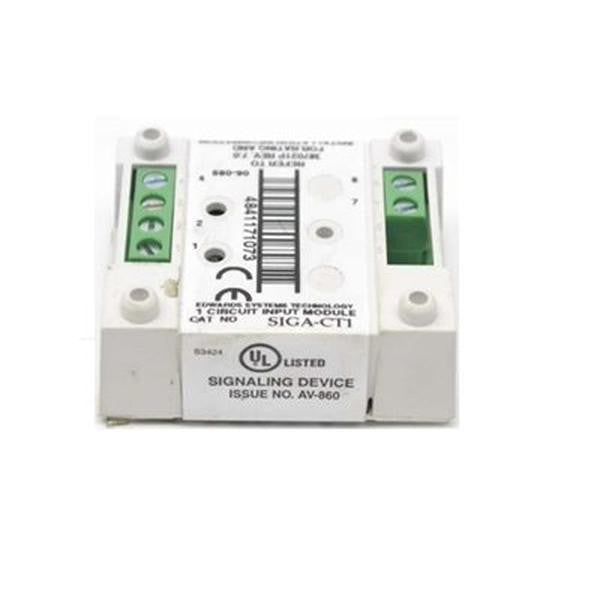

Edwards SIGA-CT1-RC

Signature Single Input Module

Key Features

• Intelligent analog addressable input module
• Class B normally-open dry contact connectivity
• Personality code configuration for versatility
• On-board green and red LED status indicators
• Mounts to 1-gang or 4-inch square box
• Addressable on Signature loop controller
• Configurable alarm, supervisory, or monitor function

Technical Specifications

• Power: 15.2 to 19.95 VDC from SLC
• Current: 250 µA standby, 400 µA active
• SLC address: One address required (programmable)
• Input type: Class B normally-open dry contact
• Function: Configurable (alarm, supervisory, monitor)
• Mounting: 1-gang or 4-inch square electrical box
• LEDs: Green (normal), Red (alarm/active)
• Device ID: Auto-assigned via loop controller
• Datasheet: E85001-0241 Rev 1.1 (2020)

Certifications

• UL listed for Signature fire alarm systems
• NFPA 72 compliant
