Edwards SIGA-CT2-RC
Edwards SIGA-CT2-RC
Only 1 left!

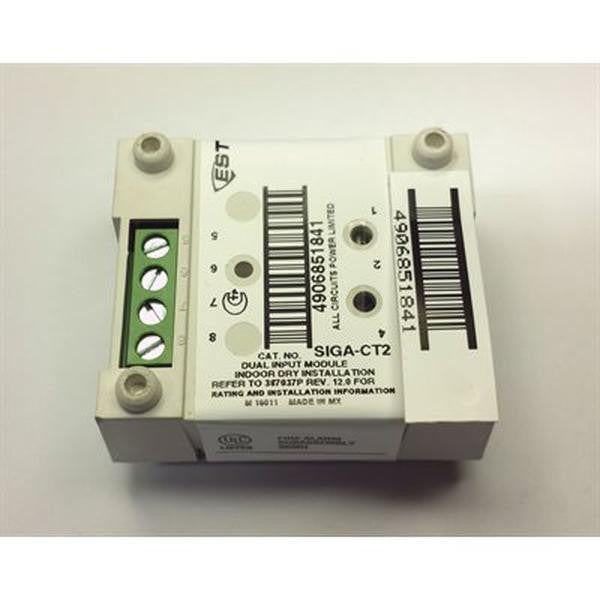

The Edwards SIGA-CT2 is an intelligent dual-input module that integrates up to two Class B, normally-open dry-contact initiating device circuits into a Signature Series fire alarm loop, with each input independently configurable for alarm, supervisory, or monitor service via selectable personality codes. It communicates only with the Edwards Signature Loop Controller and mounts in a standard 1-gang or 4" square electrical box using Signature mounting plates.
Key Features
- Two independent Class B, normally-open dry-contact inputs per module
- Selectable personality codes set each input to alarm, supervisory, or monitor service
- Green and red status LEDs at the module
- Does not support 2-wire smoke detectors — dry-contact and monitor inputs only
Technical Specifications
- Power: 15.2-19.95 VDC from the SLC; 396 µA standby, 680 µA active
- Mounting: Standard 1-gang or 4" square electrical box with Signature mounting plate
- Compatible panels: EST3, EST3X, iO Series, QuickStart-ES (Signature Loop Controller required)
