Condition: New

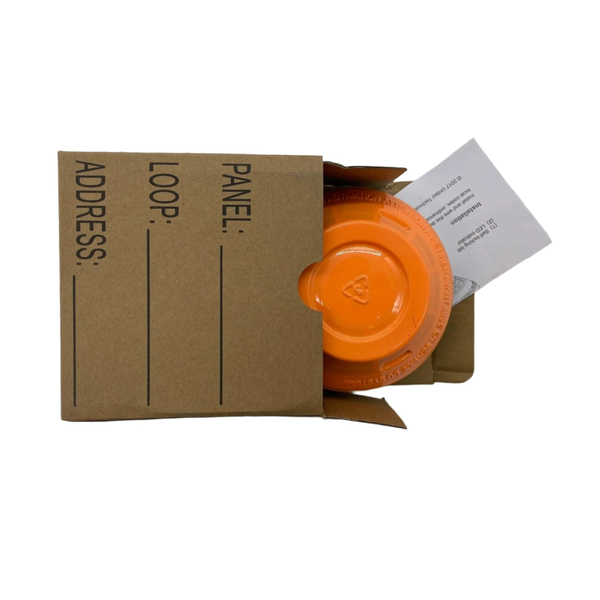

Edwards SIGA-H2D
Edwards SIGA-H2D
Detector Heat Intel Fixed Temp Heat
Regular price
$92.99
Sale price
$92.99
Regular price
Shipping calculated at checkout.
Only 6 left!
Signature Intelligent Fixed-Temperature Heat Detector with Dual Reporting
Key Features
- Addressable intelligent heat detection
- Fixed temperature alarm with programmable emergency threshold
- Dual reporting capability for redundancy
- High-impact polymer construction (white finish)
Technical Specifications
- Operating voltage: 15.20 to 19.95 VDC from loop
- Standby current: 51 micrograms per amp
- Alarm current: 68 micrograms per amp
- Fixed alarm threshold: 135 degrees F (57.2 degrees C)
- Actual alarm range: 129 degrees F to 141 degrees F
- Maximum spacing: 50 feet (15.2 meters)
- Color: White
Certifications
- CAN/ULC-S530-M91 listed
- UL 521 listed
- NFPA 72 compliant
