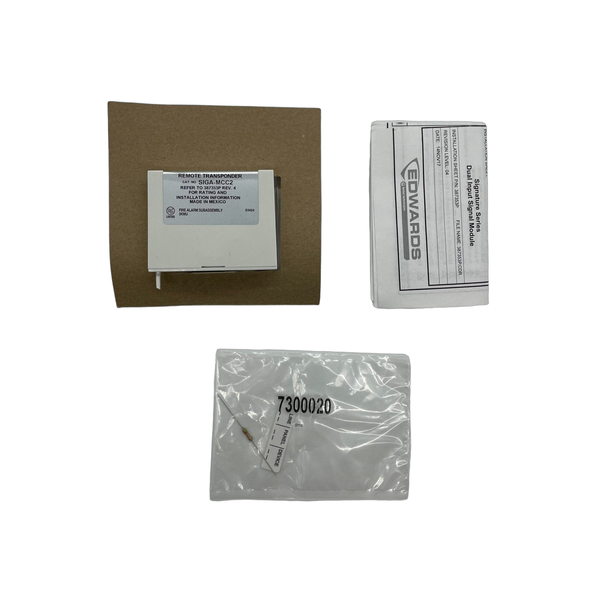

Edwards SIGA-MCC2

The Edwards SIGA-MCC2 is a dual input signal module for Signature Series addressable systems, providing intelligent routing of supervised initiating circuits to associated power inputs for audible and visible notification appliances. Each input is individually supervised, and the module operation is configured via personality codes downloaded from the loop controller, allowing flexible mapping of initiating devices to notification circuits.

Key Features

• Dual independently supervised input circuits for initiating device connections
• Flexible power output options for 24VDC notification appliances or 25/70VRMS audio equipment
• Personality-code configuration via Signature Series loop controller
• Status LEDs for visual indication of each input state
• Part of the UIO modular plug-in family for flexible mounting and installation
• Individual device intelligence on the addressable loop

Technical Specifications

• Input Quantity: Dual (2) supervised inputs
• Power Output Options: 24VDC for notification devices OR 25/70VRMS for audio speakers
• Configuration: Personality-code downloaded from Signature Series loop controller
• Module Type: UIO plug-in addressable module, identical to SIGA-CC2
• Loop Address: Assigned during system configuration
• Status Indication: LEDs for each input state
• Operating Voltage: Standard Signature Series 24VDC loop supply

Certifications

• UL Listed Signature Series addressable module
