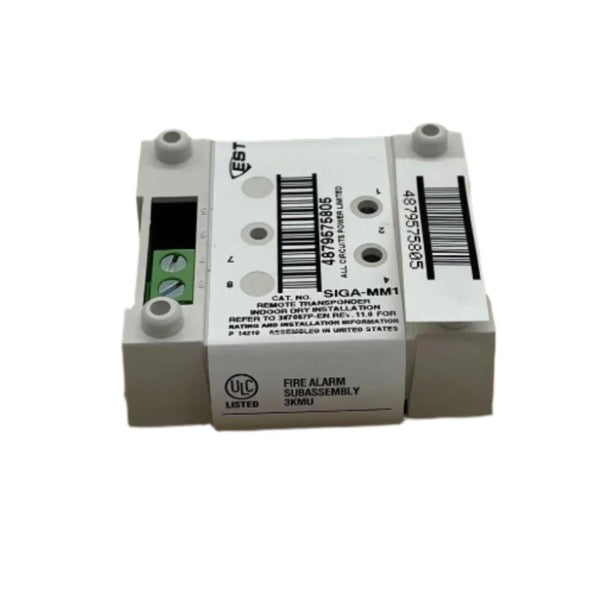

Edwards SIGA-MM1
Edwards SIGA-MM1
Module Monitor Single Input Single Circuit Input
Regular price
$46.99
Sale price
$46.99
Regular price
Shipping calculated at checkout.
Only 8 left!
Key Features
- Addressable input module for dry-contact initiating devices
- Electronic addressing eliminates manual switches
- Built-in diagnostics and automatic device mapping
- Supports Class B normally-open dry-contact circuits
- Integrates fans, dampers, doors, and supervisory inputs
Technical Specifications
- Operating Voltage Range: 15.2-19.95 Vdc
- Standby Current: 300 µA; Activated Current: 450 µA
- Ground Fault Impedance: 10 kΩ
- Max. Circuit Resistance (Per Channel): 50 Ω
- Max. Circuit Capacitance (Per Channel): 0.1 µF
- Operating Temperature: 32-120°F (0-49°C)
- Humidity: 0-93% RH, non-condensing
- Storage Temperature: -4-140°F (-20-60°C)
- Wire Size Compatible: #12-#18 AWG (2.5-0.75 mm²)
Certifications
- UL Listed for EST Signature Series systems
- NFPA 72 compliant
