Edwards SIGA-MP2L
Edwards SIGA-MP2L
In stock!

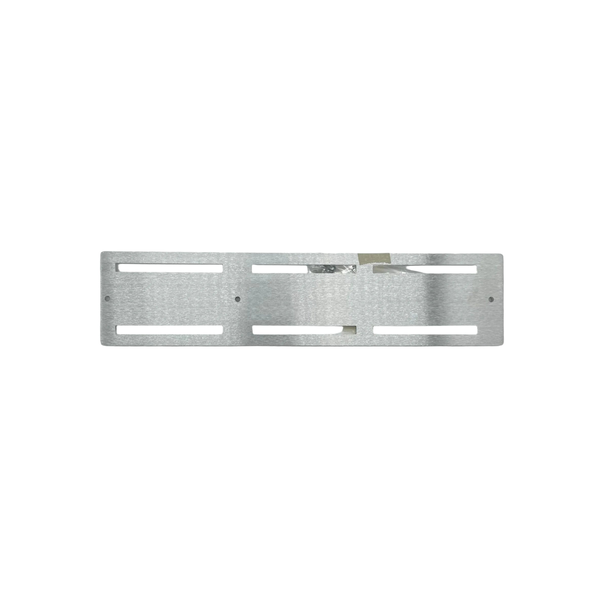

The Edwards SIGA-MP2L is a flat aluminum module mounting plate that installs inside EST's standard equipment enclosures, letting the installer group multiple Signature Series modules on a single plate instead of mounting each one separately. It holds any combination of up to three larger modules (SIGA-CC1, SIGA-CC2, or SIGA-UM) or six smaller modules (SIGA-CT1, SIGA-CT2, SIGA-CR, SIGA-MM1, or SIGA-WTM), per Edwards' installation sheet 387162.
Key Features
- Flat aluminum plate for grouping multiple Signature Series modules in one location
- Mounts inside EST's standard equipment enclosures
- Accepts any combination of compatible SIGA modules up to its capacity
Technical Specifications
- Capacity: Three larger modules (SIGA-CC1, SIGA-CC2, SIGA-UM) OR six smaller modules (SIGA-CT1, SIGA-CT2, SIGA-CR, SIGA-MM1, SIGA-WTM)
- Material: Aluminum, flat plate
- Mounting: EST standard equipment enclosures
- Reference: Edwards installation sheet 387162 R03
