Edwards SIGA-SEC2

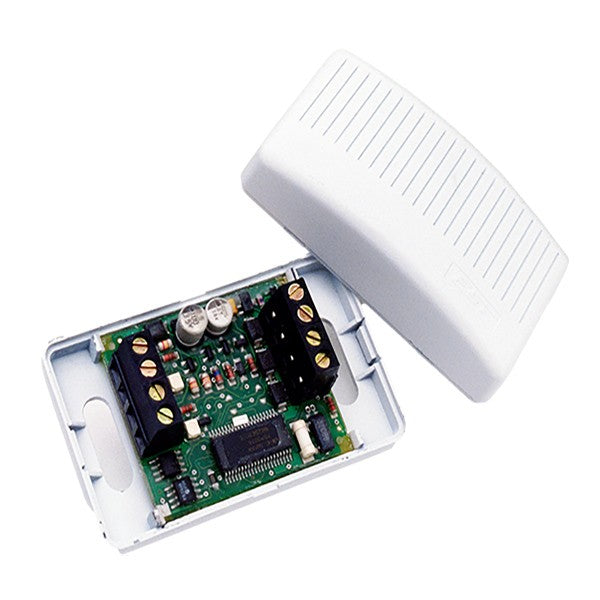

The Edwards SIGA-SEC2 is an intelligent, addressable dual-input security module for the Signature Series data loop, connecting one or two normally-open or normally-closed dry-contact security devices -- door contacts, motion detectors, glass-break sensors, and similar locally-powered inputs. Each of the two circuits is independently assigned an installer-selected "personality code" that determines whether that circuit reports a security alarm, tamper, trouble, or maintenance condition, and the module's on-board microprocessor and non-volatile memory handle that logic locally before reporting to the host panel.

Key Features

• Two independent dry-contact input circuits, each with its own selectable personality code
• Electronic addressing -- no dip switches or dials, each module has a unique stored serial number
• Small thermoplastic enclosure designed for surface mounting without an electrical box
• Diagnostic LEDs and non-volatile memory for on-board fault/service indication

Technical Specifications

• Personality codes: Normally Open w/Tamper (41), Normally Closed w/Tamper (42), Basic Security (43), Tamper (44), Maintenance (48), Normally Open w/Trouble / Active-Non-Latching (3), Security Open w/Fault (45), Security Closed w/Fault (46)
• Wiring terminals: 16 AWG (1.00 mm²) to 22 AWG (0.25 mm²)
• Compatibility: EST3 Signature loop controllers, requires two Signature addresses
• Mounting: Surface mount, no electrical box required

Certifications

• UL/ULC Listed (S3424); designed in accordance with the ISO 9001 Quality System
