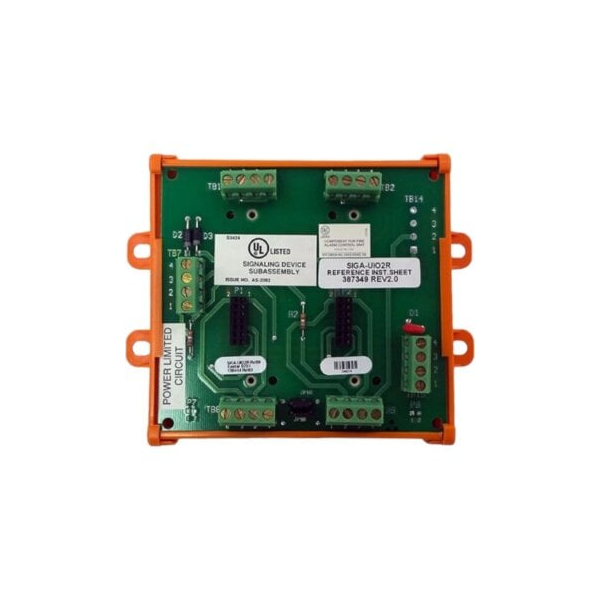

Edwards SIGA-UIO2R-RC

Signature Universal Input-Output Module Board - 2 Position

Key Features

• Motherboard for two UIO modules
• Dual riser input configuration (#1 and #2)
• Rigid extruded track mounting system
• Tool-free captive screw module securing
• Terminal block field wiring connections
• Rapid module removal for troubleshooting
• Compatible with SIGA M-Series modules

Technical Specifications

• Module capacity: Two UIO modules
• Riser configuration: Dual riser #1 and #2 inputs
• Riser sharing: Jumpers for single riser among multiple modules
• Mounting: Rigid extruded track with pads
• Wiring: Terminal block connections for field wiring
• Module securing: Captive machine screws
• Module compatibility: SIGA M-Series only
• Dimensions: Compact DIN-rail compatible

Certifications

• UL listed for Signature systems
• NFPA 72 compliant
