Condition: New

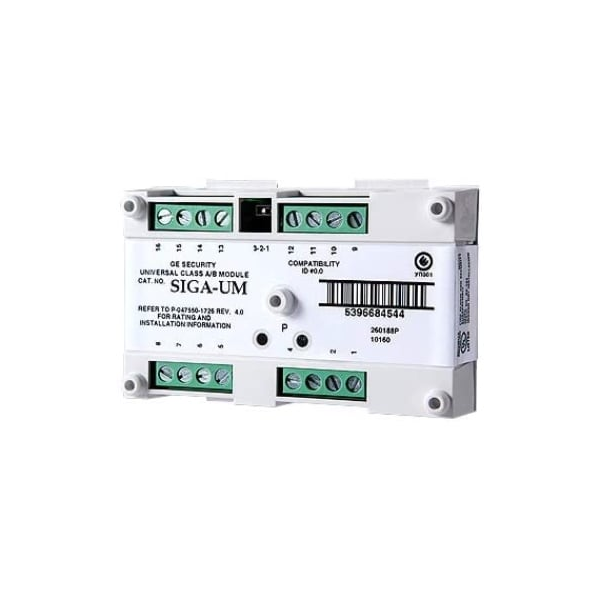

Edwards SIGA-UM
Edwards SIGA-UM
Module Universal Class A/B Select From 15 Per
Regular price
$106.99
Sale price
$106.99
Regular price
Shipping calculated at checkout.
In stock!
Universal Class A/B Addressable Module
Key Features
- Intelligent universal Class A/B module for Signature Series loops
- Configurable by personality code for multiple functions
- On-board microprocessor for intelligent signal analysis
- Supports 2-wire smoke detector circuits
- Dry relay output configuration option
- Automatic device mapping and electronic addressing
- Built-in diagnostics and history logging
Technical Specifications
- Power: 15.2 to 19.95 VDC from SLC (19V nominal)
- Operating current: 2 mA standby, 17 mA alarm (2-wire smoke circuits)
- Configurable functions: Dual Class B IDC, single Class A IDC, Class A/B NAC, 2-wire smoke detector circuit, Form C relay output
- Operating temperature: -40°F to 151°F
- Mounting: Standard electrical box
- Personality code: Installed via loop controller
Certifications
- UL 1971 listed
- Compatible with Edwards EST Signature Series panels
- NFPA 72 compliant
