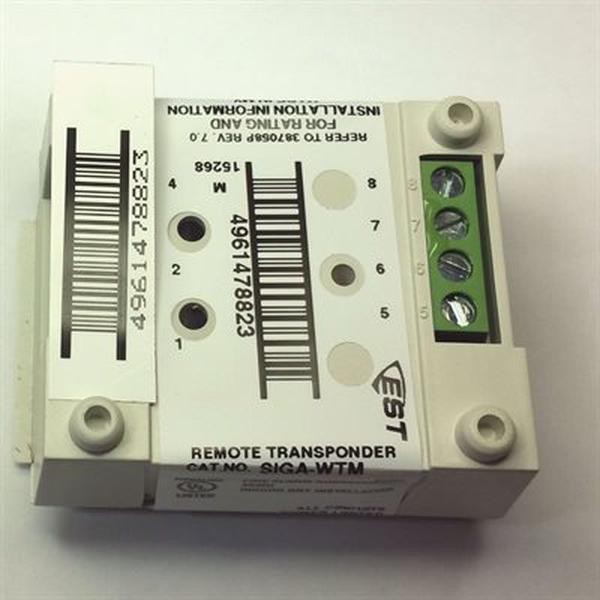

Edwards SIGA-WTM-RC
Edwards SIGA-WTM-RC
RECON-Combo Waterflow/Tamper Module
Regular price
$74.99
Sale price
$74.99
Regular price
Shipping calculated at checkout.
Requires reconditioning, ships in 14–21 days.
Only 3 left!
Waterflow/Tamper Monitoring Module
Key Features
- Intelligent addressable waterflow and tamper module for Signature Series
- Two Class B monitoring channels: waterflow and supervisory tamper
- Delayed-latching waterflow alarm with supervisory tamper monitoring
- Electronic addressing for easy configuration
- Low SLC current draw for efficient system operation
Technical Specifications
- Channels: 2 Class B inputs (waterflow and tamper)
- Waterflow Channel: Delayed-latching alarm output
- Tamper Channel: Latching supervisory/tamper alarm
- Power: 15.2-19.95 VDC from SLC
- Current Standby: 396 μA
- Current Active: 680 μA
- SLC Addressing: Uses 2 consecutive addresses
- IDC Limits: 50 Ω total, 0.1 μF per circuit
- Mounting: Single-gang installation
- Status Indicators: On-board status and alarm LEDs
- Operating Temperature: Up to 120°F (49°C) ambient
Certifications
- Signature Series addressable module certified
- UL fire alarm system component certified
