Edwards WG4RF-SVMHC

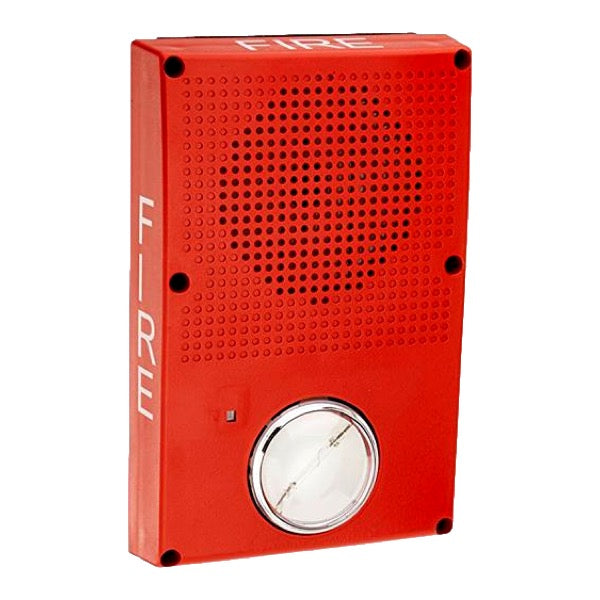

Edwards WG4RF-SVMHC Genesis WG4 Series Speaker Strobe

The Edwards WG4RF-SVMHC is a Genesis WG4 Series speaker strobe designed for both indoor and outdoor applications, providing reliable audible and visual alerts in emergency situations. Its robust construction and versatile features make it suitable for various environments, including challenging conditions.

Key Features:

• Indoor and Outdoor Use: Rated for operation in a wide temperature range from -40°F to 151°F (-40°C to 66°C), making it suitable for diverse environments.

• Mounting Flexibility: Supports both wall and ceiling installations, allowing for adaptable placement based on specific site requirements.

• Field-Selectable Settings: Offers adjustable candela settings with high-output strobe versions ranging from 102 to 161 cd, providing appropriate illumination intensity for different applications.

• Synchronization Capability: Fully compatible with Genesis synchronization protocols, ensuring coordinated operation of multiple devices within a system.

Specifications:

• Operating Voltage: 24 VDC for the strobe and 25/70 VRMS for the speaker.

• Sound Output: Provides a sound level of 90 dB at 10 feet, ensuring clear audible alerts.

• Dimensions: Measures 8.63 inches in height, 5.63 inches in width, and 1.31 inches in depth, featuring a low-profile design that blends seamlessly with various architectural styles.

• Color and Markings: Comes in a red finish with clear lens and “FIRE” markings, providing clear visual indication of its purpose.
