Federal Signal LP409028
Federal Signal LP409028
Out of stock; call for lead time

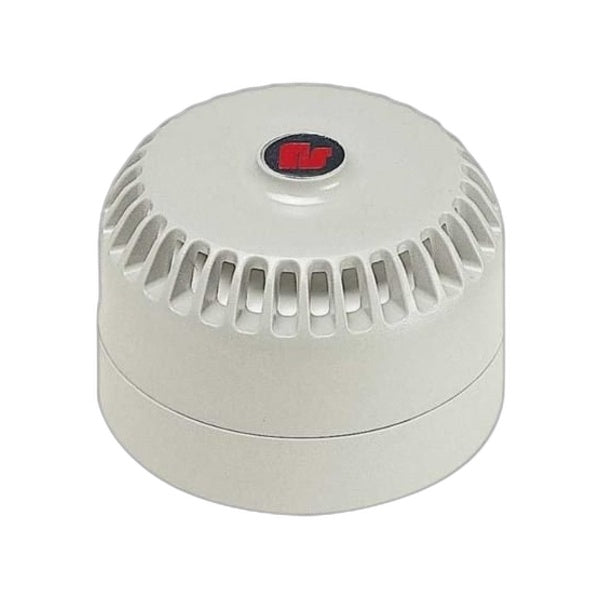

The Federal Signal LP409028 is a StreamLine low-profile miniature piezo sounder designed for versatile notification applications requiring compact mounting and flexible voltage operation. With 32 selectable tones, field-adjustable volume control providing 20dB of adjustment, and wide voltage compatibility from 9 to 28VDC, this device delivers sound output ranging from 82 to 100 dBA depending on the tone selection, making it suitable for both indoor and outdoor alarm signaling.
Key Features
- Low-profile compact design with ABS casing for space-constrained installations
- 32 different selectable tones with second tone option via third-wire connection
- 20 dB volume adjustment for field optimization
- PLC-compatible with low current consumption (3/33 mA)
- Panel or wall mount installation options
Technical Specifications
- Operating Voltage: 9-28VDC without adjustment required
- Operating Current: 3/33 mA
- Sound Output: 82-100 dBa at 10 feet (92-110 dBa at 1 meter)
- Dimensions: 3.66" W x 3.66" D x 3" H
- Operating Temperature: -13°F to 158°F (-10°C to 70°C)
- Enclosure Rating: Type 4X, IP54 (IP65 with optional deep base)
- Color: White with ABS construction
Certifications
- ARRA Compliant
- BAA Compliant
- CE Certified
- Indoor/Outdoor rated
