Fike 20-1063
Fike 20-1063
Only 1 left!

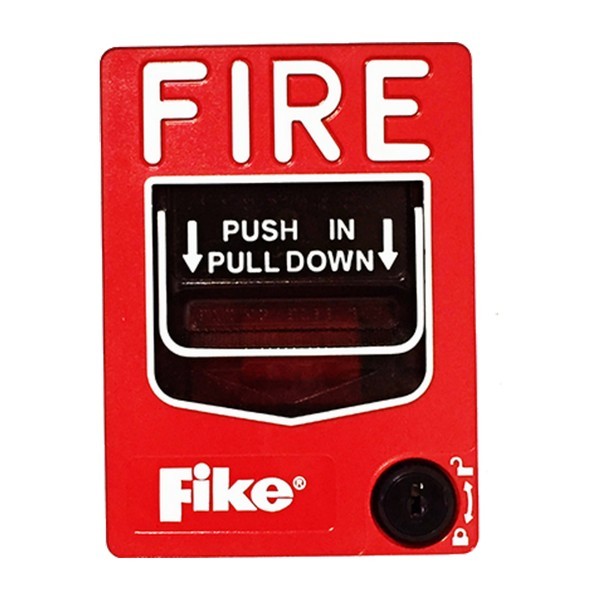

The Fike 20-1063 is an intelligent, addressable pull station designed for Fike's fire alarm control panel networks, operating on 15-30 VDC with a standby current draw of just 370 µA (continuous broadcast, max average). When activated, the station draws a maximum alarm current of 2 mA and lights a red LED to visually confirm the alarm condition to responders. It's rated for an operating temperature range of 32°F to 120°F (0°C to 49°C), suiting it to standard indoor commercial installations.
Key Features
- Intelligent (addressable) manual pull station for Fike fire alarm networks
- Red LED alarm indicator confirms activation at the device
- Low standby current draw for efficient loop operation
- Rated for standard indoor commercial temperature range
Technical Specifications
- Operating Voltage: 15-30 VDC
- Standby Current: 370 µA max average (continuous broadcast)
- Alarm Current: 2 mA maximum (red LED on)
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
