Fike 55-046
Fike 55-046
Out of stock; call for lead time

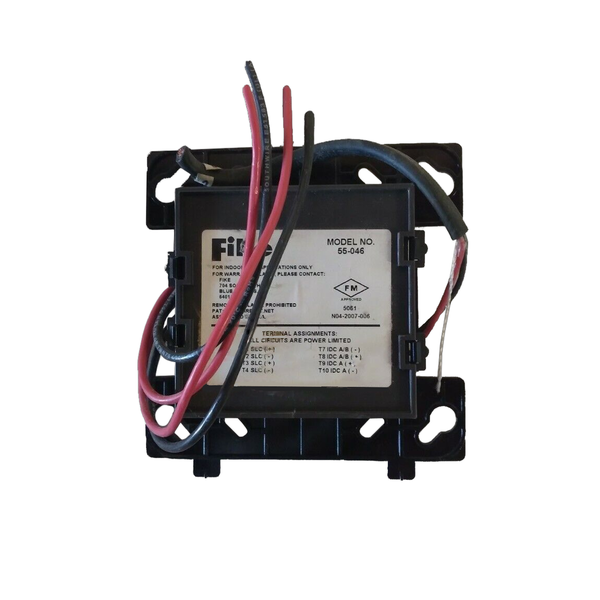

The Fike 55-046 is an addressable monitor module with built-in short-circuit isolators, cross-referenced in Fike's own catalog as the EM-1MI design. It monitors the normally open contacts of an auxiliary initiating device while also supervising the field wiring for open circuits via an end-of-line resistor, and its on-board isolators keep a wiring short on the signaling line circuit from taking down more than the one affected device. The module supports both Class A and Class B circuit wiring configurations on Fike's intelligent addressable fire alarm loop.
Key Features
- Addressable monitor module for a single normally-open initiating device contact
- Built-in short-circuit isolators protect the rest of the loop from a wiring fault
- Supervises field wiring for open circuits via an end-of-line resistor
- Supports Class A or Class B circuit wiring
Technical Specifications
- Circuit Type: Class A or Class B capable
- Isolators: Built-in, on-board short-circuit isolation
- Wiring Supervision: End-of-line resistor, open-circuit detection
- Monitored Contact: Normally open, auxiliary device
