Fike C70-226

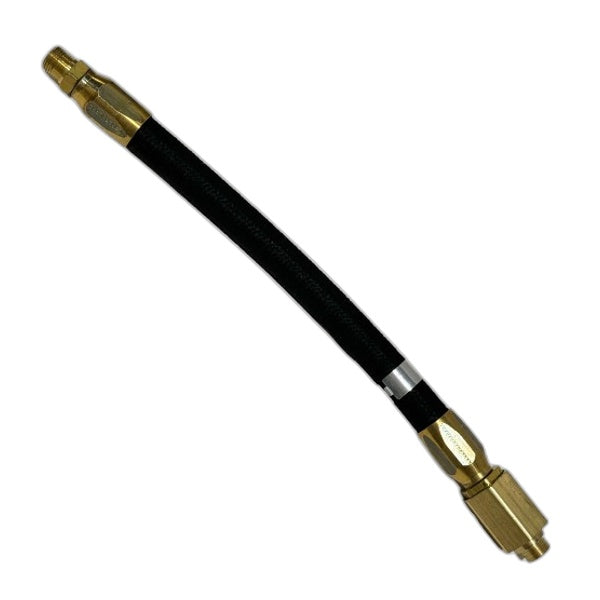

The Fike C70-226 is a flexible discharge bend assembly used in Fike carbon dioxide fire suppression systems to provide a flexible connection between a CO2 cylinder valve and the distribution manifold or main discharge piping. The assembly includes an internal check valve that prevents loss of pressurized CO2 agent in the event a cylinder is removed while the system is charged.

Key Features

• Flexible discharge bend designed for Fike CO2 suppression system piping connections
• Integrated check valve prevents agent loss during cylinder removal
• Allows non-rigid routing of discharge piping from cylinder valve to distribution network
• Compatible with standard Fike CO2 manifold and cylinder assembly components
• Rated for high-pressure CO2 applications per NFPA 12 standards

Technical Specifications

• Component Type: Flexible discharge bend assembly with check valve
• Application: Fike carbon dioxide special hazard suppression systems
• Connection Type: Standard Fike cylinder and manifold interface
• Check Valve: Integral, prevents backflow and agent loss
• Pressure Rating: Suitable for high-pressure CO2 cylinder discharge
• Material: Compatible with CO2 applications per NFPA 12

Certifications

• Designed per NFPA 12 Standard on Carbon Dioxide Extinguishing Systems
• Component of UL-listed Fike CO2 suppression systems
• Suitable for commercial and industrial special hazard applications
