Firelite ANN-LC

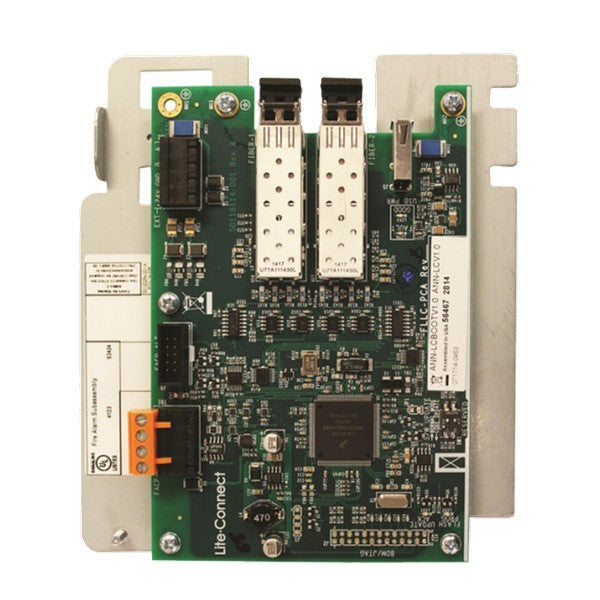

The Fire-Lite ANN-LC Lite-Connect fiber module lets multiple Fire-Lite fire alarm control panels share a single communicator and phone line for alarm, supervisory, and trouble reporting to a central station. Using fiber-optic cabling between panels, the ANN-LC reduces phone line costs while avoiding the ground-fault and lightning-strike risks associated with copper building-to-building connections.

Key Features

• Consolidates central station reporting for multiple FACPs onto one communicator
• Fiber-optic connections eliminate ground loop and lightning-induced damage risks between buildings
• Supports a hub-and-node network topology, with one hub and up to 16 nodes per fiber circuit

Technical Specifications

• Compatible with MS-9050UD Series panels (software v4.0+) and MS-9200UDLS Series panels (software v7.0+)
• Hub panel must be an MS-9050UD; each FACP requires its own ANN-LC module
• Supports up to 50 points/20 zones (MS-9050UD) or 198 points/99 zones (MS-9200UDLS) reported to the central station

Certifications

• Manufactured by Fire-Lite Alarms for use with UL-listed Fire-Lite fire alarm control panels
