Firelite BG-12SL
Firelite BG-12SL
Out of stock; call for lead time

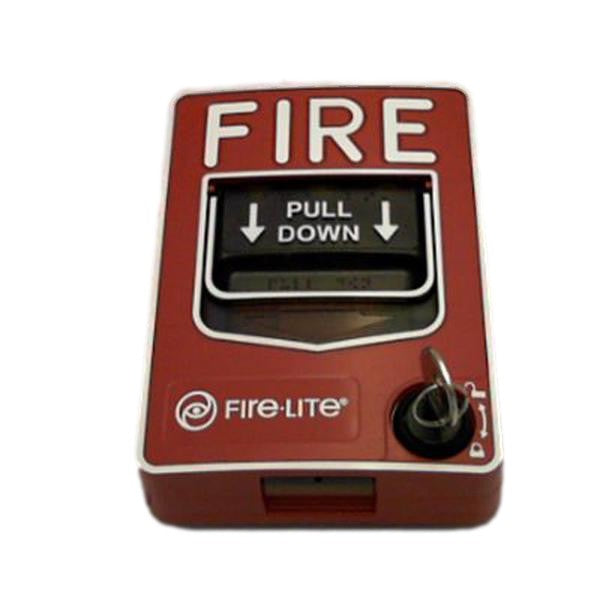

The Firelite BG-12SL is a non-coded single-action manual pull station engineered for simplicity and reliability in conventional fire alarm systems. This pull station features die-cast construction with a pigtail connection design and key-lock reset, making it ideal for quick emergency activation while providing clear visual confirmation through the bright yellow "ACTIVATED" label that displays when operated.
Key Features
- Single-action operation with pigtail connections for flexible installation
- Die-cast construction with durable design for long service life
- Key-lock reset mechanism prevents unauthorized resets and improves security
- Clear "ACTIVATED" indicator displays in bright yellow on handle when operated
- Textured finger-hold area with Braille text and operating instructions for accessibility
Technical Specifications
- Contact Type: SPST normally open
- Activation: Single-action pull operation
- Wiring: Pigtail connections; accepts field wiring up to 12 AWG
- Reset: Key-lock mechanism, handle latches in down position when operated
- Pull Force: 5 lb. maximum pull force (ADA compliant)
- Terminal Strip: Four-position with Phillips combination-head captive screws, 8/32 size
- Mounting: Surface mount (SB-10 or SB-I/O) or semi-flush to standard single-gang, double-gang, or 4-inch square electrical box
Certifications
- UL 38 Listed for manually actuated signaling boxes
- ADA compliant with 5 lb. maximum pull force
- Compatible with Firelite conventional fire alarm control panels
