Firelite CRF-300-6

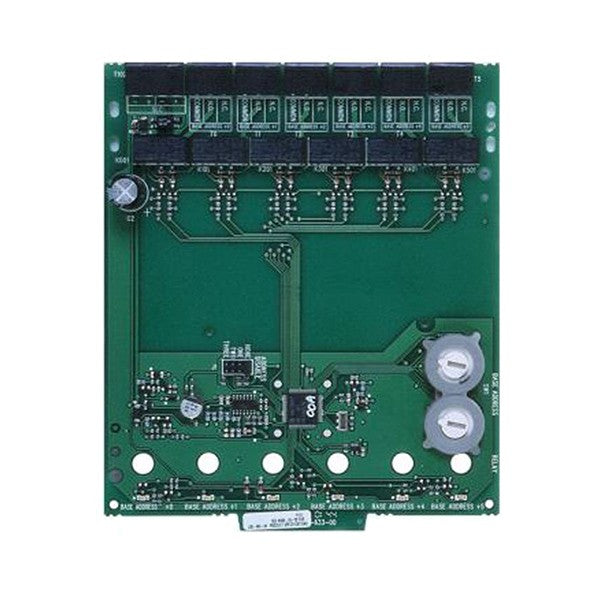

The Fire-Lite CRF-300-6 is an addressable six-relay control module providing independent relay outputs for controlling auxiliary equipment and devices in fire alarm systems. Each module supplies one isolated set of six dry relay contacts, enabling complex switching logic for door locks, dampers, fans, and other control applications.

Key Features

• Six Form-C relay contacts (one per module address)
• Addressable module with rotary switch configuration (addresses 1-154)
• Panel-controlled green LED indicators
• Normally open or normally closed programmable operation
• First module addresses 1-154; remaining modules auto-assign sequential addresses
• Provision to disable up to three unused modules

Technical Specifications

• Operating Voltage: 15-32 VDC
• Standby Current: 1.45 mA
• Alarm Current: 32 mA (all six relays + LEDs)
• Relay Contact: Isolated Form-C dry contacts
• Operating Temperature: 32-120°F (0-49°C)
• Address Configuration: First address 1-154; auto-sequential assignment

Certifications

• UL Listed relay control module
• Fire-Lite addressable system compatible
• NFPA 72 compliant control relay
