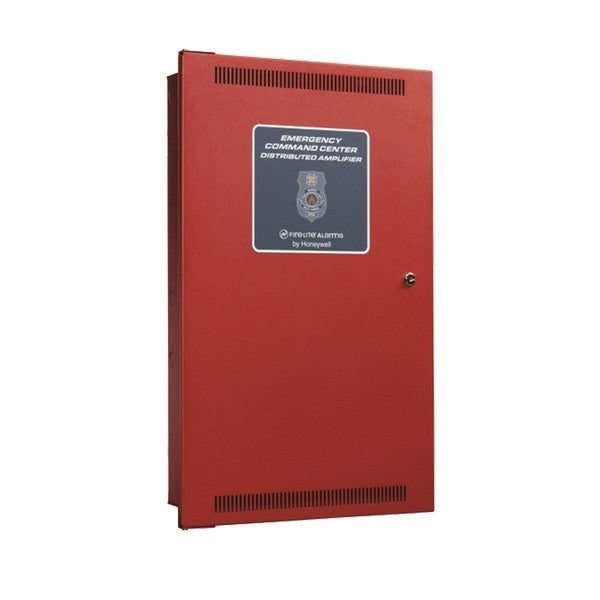

Firelite ECC-125DA

The Fire-Lite ECC-125DA is an externally mounted distributed audio amplifier that adds 125 watts of audio power to an ECC-50/100(E) series voice evacuation control panel. Running on 120 VAC, it comes standard with four fully supervised speaker circuit zones, expandable to eight when an optional ECC-CE4 module is added, and is configured through the host panel's built-in web-based programming utility.

Key Features

• Adds 125 watts of distributed audio power to an ECC-50/100(E) system
• Four onboard, fully supervised speaker circuits, expandable to eight with an ECC-CE4 module
• Supports both Class A (Style Z) and Class B (Style Y) speaker circuit wiring
• Up to eight ECC-50DA(E)/ECC-125DA(E) units per system for 1,100 watts of audio power across 24 speaker circuits
• Built-in power supply and battery charger supporting up to 35 Ah batteries

Technical Specifications

• Input Power: 120 VAC, 60 Hz, 2200 mA
• Output: 125W audio power when connected to an ECC50100 system

Certifications

• UL 2572 Listed (Communication and Control Units for Mass Notification Systems)
